200A Outdoor Main Panel Upgrade in Charlotte, NC
On May 10, 2025, our Charlotte team based out of our Matthews branch completed a comprehensive electrical panel upgrade for homeowner Melanie Overcash in Charlotte, NC. Lead technician Patrick Burke relocated all interior circuits into a new 200-amp copper outdoor main panel, brought the installation in line with current electrical code, added GFCI protection where required, and installed a new hallway outlet.
This project strengthens service capacity, enhances safety with modern grounding and protection, and sets the home up for future electrical needs such as EV charging, upgraded HVAC equipment, and kitchen or laundry improvements.
What We Delivered
- Complete panel relocation: Moved all existing interior circuits to a new weather-rated copper main panel outdoors.
- Service capacity and organization: Installed and labeled new breakers to match appliance loads and dedicated circuits.
- Grounding upgrades: Drove ground rods and bonded the system to improve fault clearing and overall safety.

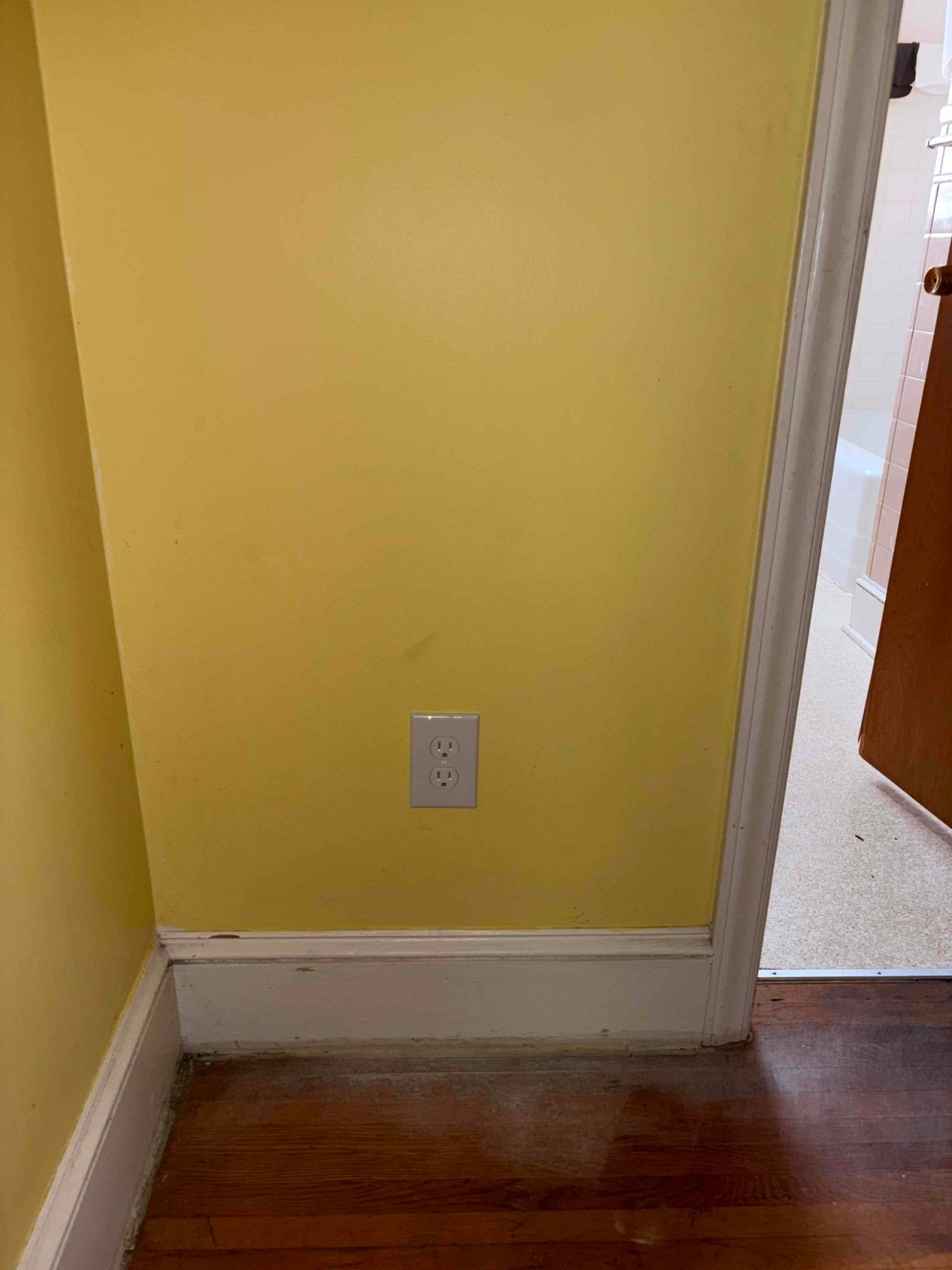

- Added receptacles and protection: Installed a new hallway outlet and provided GFCI protection where code requires.
- Permitting and inspection: Coordinated the project under permit and prepared documentation for local inspection.
Installed Components and Electrical Details
- Main Panel: 200-amp outdoor copper main panel, grounded and bonded, service conductors reconnected, circuits relabeled.
- Grounding: Ground rods driven and connected with listed clamps; grounding electrode conductor routed to the service equipment.
- Breakers:
- 2 × 60A standard
- 1 × 100A (2-pole) for a subpanel
- 1 × 50A standard
- 2 × 30A (double pole)
- 1 × 20A (double pole)
- 9 × 20A standard
- 3 × 15A standard
- Branch wiring:
- 223 ft NM-B 12/2 for 20-amp small appliance and receptacle circuits
- 150 ft NM-B 14/2 for lighting and general-purpose circuits
- 100 ft NM-B 10/3 for 30-amp 240V loads (dryer, water heater, etc.)
- 50 ft NM-B 6/3 for 50-amp 240V loads
- Receptacles and protection: 2 × GFCI outlets installed with appropriate covers; new hallway receptacle added.
Code, Safety, and Performance Benefits
Moving to a modern outdoor 200-amp copper panel helps ensure reliable service capacity and a cleaner, safer distribution layout. The upgraded grounding improves fault-path integrity, while correctly sized breakers and newly organized circuits reduce nuisance trips and support dedicated loads like HVAC, ranges, and potential EV chargers.
- Code alignment: Panel, grounding, and protection brought into compliance with current standards applicable in Charlotte.
- Protection where it counts: GFCI coverage added where required to help reduce shock risk in applicable areas.
- Future-ready: Additional breaker capacity and clean labeling make it easier to expand or modify circuits later.
- Outdoor durability: Weather-rated equipment and proper terminations support long-term reliability.
As local inspectors continue adopting newer NEC requirements, some homes may need updates such as AFCI protection on select circuits. Our team discusses these items during inspection coordination to ensure a smooth path to approval.
Local Permitting and Inspection Support
Touchstone Electric handled permitting and scheduling for this Charlotte panel upgrade and prepared the installation for inspection. From circuit labeling to grounding terminations, our team documents and details the work so homeowners and inspectors can confirm compliance with local code.
Reviewed by Our Charlotte Customer
Melanie Overcash praised our work on this project. Read the review on Google: View Melanie’s Google review.
Serving Charlotte, NC
This project is part of our Panels & Service Upgrades and Electrical Panel Upgrades services in the Charlotte, NC area. If you need a safe, code-compliant 200-amp upgrade or help preparing for new loads like EV charging, our Matthews-based Charlotte branch is ready to help.
