Professional Electrical Service Upgrade in Hendersonville, NC
On May 10, 2024, our Greenville branch completed a comprehensive 200-amp meter/panel combo replacement and main panel upgrade for homeowner Chris Stephenson in Hendersonville. Led by technicians Brian Cain and Theo Coetsee, this project modernized the home’s electrical service, improved safety, and brought the system in line with current electrical code. This job falls under our Panels & Service Upgrades and Electrical Panel Upgrades services.
Scope of Work
- Replaced the existing service with a new 200A meter/panel combo, including conduit to the weatherhead, new service entrance conductors to the drip loop, and ground rods with grounding electrode conductors.
- Installed a new 200A indoor main panel (aluminum), grounded and bonded, with all existing circuits reconnected and the panel fully labeled for clarity.
- Pulled required permits and coordinated the utility power drop to complete the upgrade safely and efficiently.
- Added new breakers for critical circuits, installed multiple GFCI outlets, and expanded dedicated 20-amp circuits where needed.
- Relocated the panel to a code-compliant position and performed full circuit restoration to verify reliability across the home.
To minimize disruption during the scheduled outage, Touchstone can provide a generator for limited power usage upon request.
Safety and Code Enhancements
- Integrated a whole-home surge protector with a $25k warranty component as part of the meter/panel combo and main panel scope.

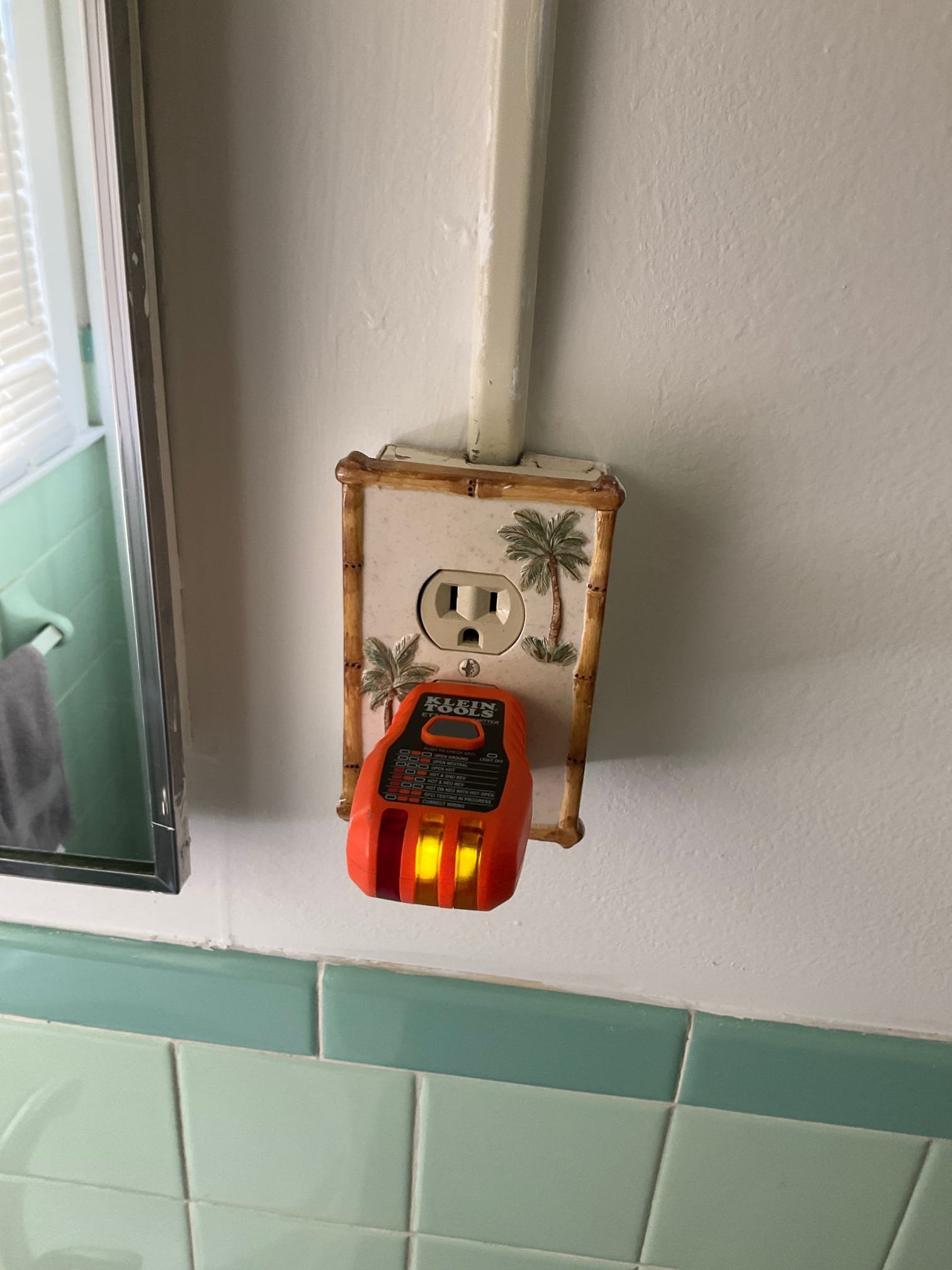

- Upgraded receptacles during redevice, including tamper-resistant outlets for enhanced child safety and new GFCI protection at required locations.
- Added a dedicated 30A indoor equipment disconnect to provide a safe shutoff for maintenance on specific appliances.
- Installed and hard-wired a new smoke detector network to improve whole-home life safety coverage.
Every connection was tested during circuit restoration to ensure the upgraded service operated safely and reliably once power was restored.
Materials and Equipment Installed
- Meter/Panel Combo – 200A with conduit to weatherhead, grounding upgrades, and labeling.
- Main Panel – 200A (Indoor, Aluminum), grounded, bonded, and reconnected to existing circuits.
- SER 4/0 (4-wire) service entrance cable for a robust 200A feed.
- NM-B 12/2 Romex to support 20-amp branch circuits for appliances and outlets.
- Breakers: a mix of standard 20A and 30A double-pole breakers to support general circuits and larger loads such as HVAC, water heater, and similar equipment.
- GFCI outlets with new covers installed in compliance-sensitive areas.
- 30A indoor disconnect for safe equipment isolation.
- Panel relocation to improve access and compliance.
Permitting, Inspections, and Utility Coordination
Our team handled the entire process end-to-end. We coordinated with the utility for the scheduled power drop, pulled permits, and managed inspections as part of the upgrade. This streamlined approach helps Hendersonville homeowners enjoy a faster, safer, and fully compliant panel replacement experience.
Home Safety Membership – Gold
As part of this project, the homeowner also enrolled in our Annual Home Safety Membership – Gold, which includes:
- Panel inspection with voltage checks, bus bar review, and bonding verification.
- Testing of whole-home surge protection and service disconnects.
- Inspection of the main electrical service: meter base, feeders, weatherhead/riser, and grounding system.
- Testing of home protection systems: Smoke/CO detectors, security and camera systems.
- HVAC and major appliance disconnect inspections.
- GFCI testing throughout the home.
Gold Members also receive valuable perks, including an upgrade to a 4-year warranty on Touchstone Electric workmanship, an 8% discount on today’s work (max $500), $0 dispatch to your home, and $0 diagnostics for electrical issues.
Local Expertise You Can Trust
This Hendersonville upgrade was completed by our Greenville team with technicians Brian Cain and Theo Coetsee. Customer Chris Stephenson praised our work with a review, reflecting our commitment to quality, safety, and clear communication on every project.
If you’re considering a panel replacement or a full service upgrade in Hendersonville, NC, Touchstone Electric is ready to help with permitting, utility coordination, and code-compliant installations tailored to your home.
