200A Main Electrical Panel Upgrade in Charlotte, NC

Touchstone Electric completed a code-compliant 200-amp outdoor main panel replacement for a Charlotte homeowner on 2025-02-10. Led by technician Christian Cedillos from our Matthews-based Charlotte branch, this project ensured safer, more reliable power distribution and clear labeling for future service.

This upgrade falls under our Panels & Service Upgrades and Electrical Panel Upgrades services and was fully permitted and inspected to meet current standards in Charlotte, NC.

Scope of Work and Safety Enhancements

Our team replaced the existing main panel with a new 200A aluminum outdoor panel and brought the installation up to current electrical code. The work focused on safety, clarity, and long-term performance.

Panel replacement and labeling: Installed a new outdoor-rated 200A main panel, upgraded the main lugs, and clearly labeled all circuits for fast troubleshooting.
Grounding and bonding: Properly grounded and bonded the panel to improve fault protection and reduce shock risk.
Service reconnections: Reconnected the service entrance conductors and tied in existing branch circuits to the new panel.
Whole-home surge protection: Included a surge protector featuring a $10,000 warranty for covered connected equipment.
Permitting and inspection: Secured local permits and coordinated the required inspection for compliance.
Power management during the swap: Power was temporarily disconnected during the panel change; a generator was made available for limited use during the outage.
Panel warranty: The new panel carries a 20-year transferable warranty.

New Breakers Installed

To match the home’s load needs and support major appliances, we installed new breakers as part of this upgrade:

Two 30A double-pole breakers — commonly used for equipment such as dryers, water heaters, air condensers, spas, or EV chargers.
Three 50A breakers — suitable for ranges, heaters/furnaces, small subpanels, or EV charging loads.
One 60A breaker — ideal for higher-demand appliances like ranges, heaters/furnaces, or subpanels.

A project discount was applied to deliver added value without compromising safety or code compliance.

Code Compliance and AFCI Considerations

As Charlotte inspectors continue adopting NEC 2020 requirements, some homes may need AFCI breaker upgrades on certain circuits. Homeowners should be aware that existing wiring conditions—such as shared neutrals—can cause immediate tripping when AFCI protection is added. In those cases, diagnostic time may be required to isolate and correct the issue (for example, tracing a shared neutral across multiple fixtures). Our team explains options up front and provides solutions that align with local code and best practices.

Why Charlotte Homeowners Choose Touchstone Electric

Local expertise: Matthews-based team serving Charlotte, with experience in local permitting and inspections.
Safety-first approach: Grounding, bonding, and surge protection included to safeguard people and electronics.
Clear organization: Neatly arranged panels and labeled circuits for faster future service.
Transparent process: We communicate timelines, power downtime, and inspection steps before work begins.
Professional installation: Performed by trained technicians who follow current code requirements.

Positive Feedback from Our Charlotte Customer

After completion, Joey Yoder praised our team’s work with a positive review highlighting the professional service received.

Planning a Panel Upgrade in Charlotte?

If your home needs a panel replacement, breaker upgrades, or surge protection, our Charlotte team is ready to help. We handle permitting, coordinate inspections, and deliver clean, code-compliant results. Contact Touchstone Electric to discuss your project and schedule a visit with a local technician.

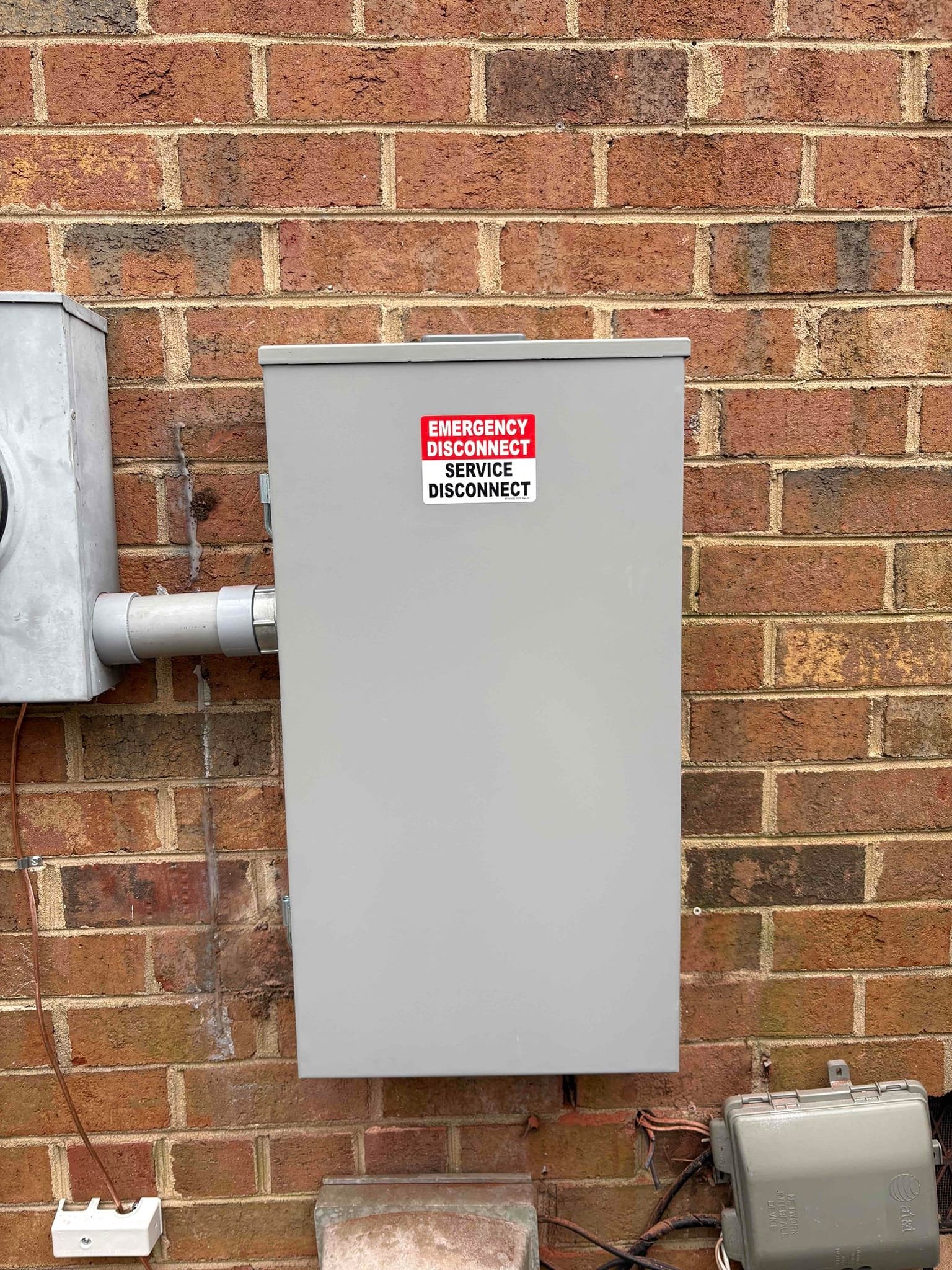

200A Main Electrical Panel Upgrade & Breaker Installation in Charlotte
