Call 855-502-2244200A Electrical Panel Upgrade in Asheville, NC
Touchstone Electric completed a full 200-amp copper main panel upgrade for homeowner Joshua Phillips in Asheville, NC. This Panels & Service Upgrades project, performed by our Hendersonville branch and supported by our Charlotte business unit, modernized the home’s power distribution, improved protection, and aligned the system with current electrical code.
To keep the home functional during the changeout, our team provided a generator for limited power use while service was temporarily disconnected. All permitting and inspection were included to ensure a smooth, compliant completion.
What We Installed
- Indoor 200A Copper Main Panel: Brought to current code, grounded and bonded, service entrance and existing circuits reconnected, and the new panel fully labeled.
- Surge Protection: Whole-home surge protector included, backed by a $10k warranty.
- Breakers Selected for the Home’s Loads:
- 2× 15A AFCI breakers
- 4× 15A standard breakers
- 4× 20A standard breakers
- 1× 30A standard (single-pole) breaker
- 2× 30A standard (double-pole) breakers
- 2× 30A GFCI (double-pole) breakers
- 1× 50A standard breaker
- 1× 90A standard breaker
- Branch Circuit Enhancements: 65 ft of NM-B 10/3 cable for 30-amp, 240V appliance circuits as needed.

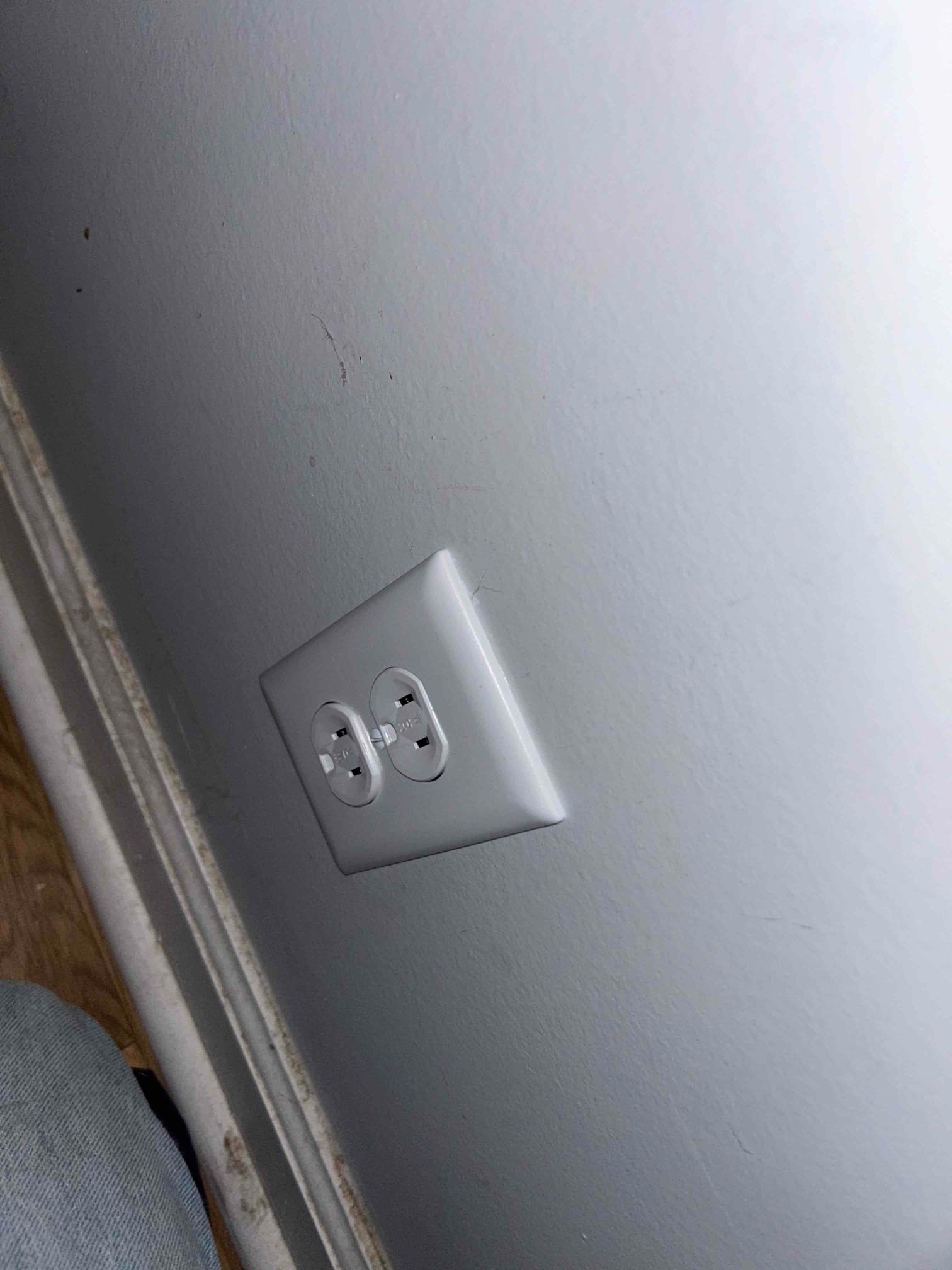

- New Outlets: 6 standard receptacles with covers installed.
- Equipment Safety: 2 pull-out disconnects (≤60A) for A/C or similar equipment to provide safe maintenance shutoff.
Code and Safety Upgrades
Our electricians updated the grounding and bonding, labeled the new panel for clarity, and added AFCI/GFCI protection in the appropriate locations for enhanced safety. These improvements help reduce risks associated with arc faults, ground faults, and power surges, giving Asheville homeowners greater confidence in their electrical systems.
As inspectors in our area implement NEC 2020 requirements, some circuits may require AFCI breakers. Installing AFCI protection can sometimes reveal preexisting wiring conditions—such as shared neutrals—that cause immediate tripping. When that happens, additional diagnostics may be required to locate and correct the issue. Our team explains these possibilities up front and troubleshoots as needed to keep your system safe and compliant.
Why a Copper 200A Main Panel?
This home received a copper panel that carries a 50-year warranty—far exceeding many aluminum options. Copper offers robust performance under heat, and its higher melting point provides added resilience. For a home that’s adding modern appliances, EV charging, or HVAC upgrades, a properly sized, code-compliant 200A copper panel is a reliable foundation.
Local Team, Professional Execution
Technicians Wyatt Barnes and Grady Houston completed this upgrade on 2024-11-22 with careful planning, neat workmanship, and a focus on safety. From the initial disconnect to the final inspection, our process minimized downtime and delivered a clean, organized panel ready for future needs.
After the project, the customer shared positive feedback about the service experience and results.
Serving Asheville, NC
Touchstone Electric proudly serves Asheville and nearby communities through our Hendersonville branch. Whether you need an electrical panel upgrade, whole-home surge protection, or added AFCI/GFCI safety, we’re ready to help.
Considering a 200A panel upgrade or planning for new appliances or an EV charger? Contact Touchstone Electric to schedule an assessment and get your home’s electrical system up to current code.
