200A Electrical Panel Upgrade and Whole‑Home Surge Protection in Raleigh

On September 26, 2025, our Raleigh branch completed a comprehensive 200A service upgrade for homeowner Ralph Woodson in Raleigh, NC. Led by technician Gustavo Peralta, the project centered on replacing the main electrical panel with a copper bus bar model, installing a whole‑home surge protection system, updating breakers, setting a new meter/panel combo, and driving new ground rods. All work included permitting and coordination for inspection.

Ralph praised our team with a public review. Read his Google review.

Scope of Work Completed

• Main Electrical Panel Replacement (200A, indoor, copper bus): Brought the service to current electrical code, labeled the new panel, grounded and bonded the cabinet, reconnected the service entrance conductors, and reconnected existing branch circuits.

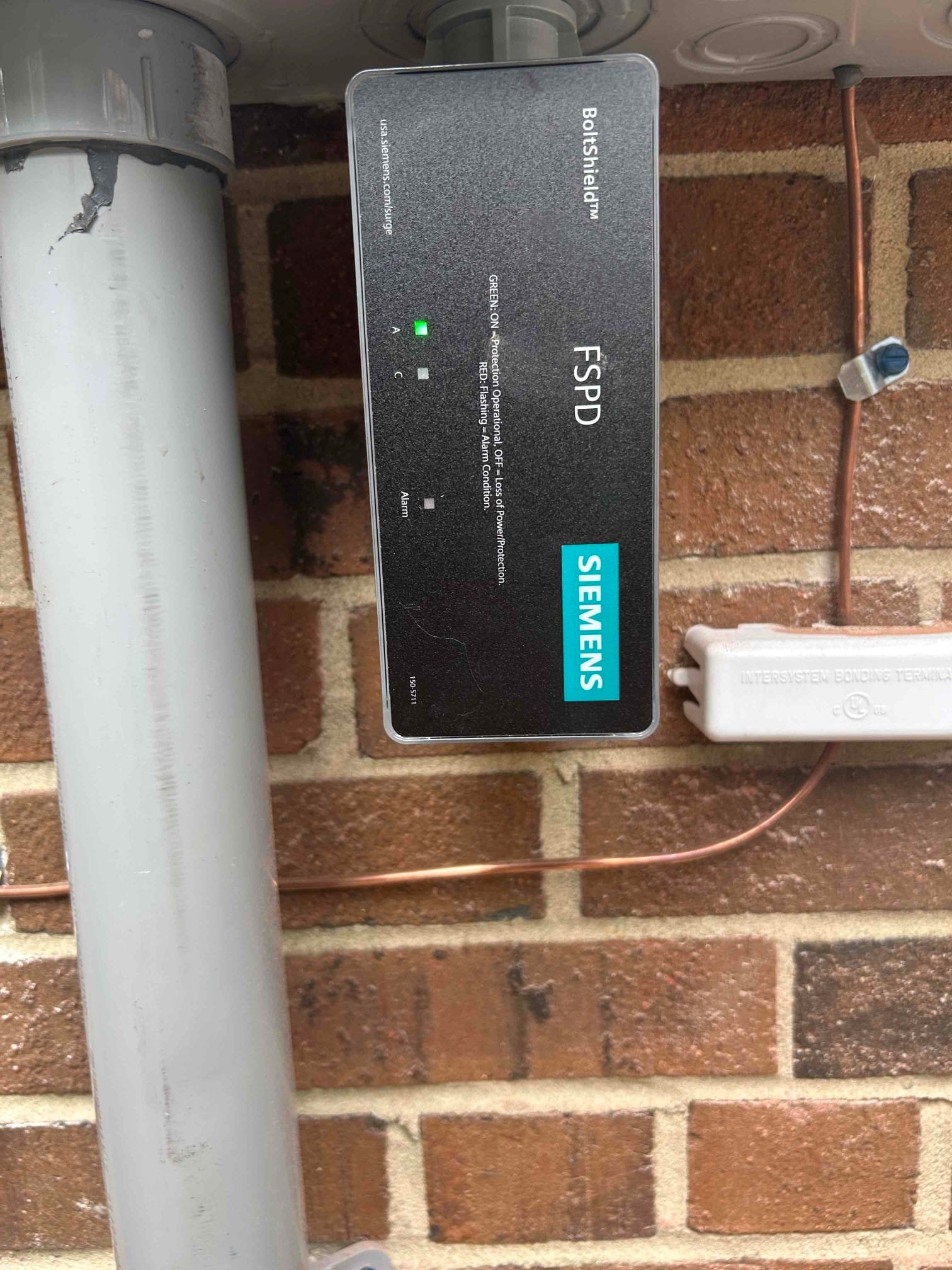

• Whole‑Home Surge Protection: Installed at the main panel to divert excess voltage safely to ground. This helps shield sensitive electronics and appliances from surges caused by lightning events in the area, grid fluctuations, or large equipment cycling.
• Breaker Updates: Added and replaced breakers to support the home’s loads, including:
  • 1 × 50A standard
  • 2 × 30A double‑pole
  • 4 × 20A AFCI
  • 7 × 20A standard
  • 3 × 15A standard
• Meter/Panel Combo (200A, over/under with feed‑through lugs): Coordinated the temporary power drop with the utility, installed the new meter/panel combo, and handled permitting and inspection scheduling.
• Grounding System: Drove new ground rods and installed grounding electrode conductors, securing and bonding connections as required.
• Limited Power During Outage: A generator was made available for limited power needs during the scheduled outage.
• PowerCare Membership: Activated to provide ongoing safety and maintenance benefits.

Why Copper Bus and Surge Protection Matter

• Copper bus bar panel: Offers robust heat tolerance and long‑term reliability. This panel carries a 50‑year transferable warranty on the copper bus, adding lasting value to the home’s electrical infrastructure.
• Whole‑home surge protector: Provides $100,000 of covered equipment protection over 10 years when properly installed at the main panel. It helps extend the life of appliances and electronics by reducing cumulative surge damage from everyday voltage spikes.

Coverage notes: Warranty claims are secondary to the homeowner’s insurance policy and do not include direct lightning strikes. Typical “covered equipment” includes common home appliances, HVAC components located inside the home, wiring, and hard‑wired devices protected by a properly connected SPD. Security systems and medical equipment are excluded.

Code, Safety, and AFCI Considerations

As Raleigh continues implementing NEC 2020 requirements, inspectors may require certain circuits to be upgraded to AFCI breakers for enhanced fire protection. Installing AFCIs can occasionally reveal preexisting wiring issues (such as shared neutrals) that may cause immediate tripping. In those cases, additional troubleshooting time can be needed to locate and correct the condition.

PowerCare Membership Benefits for This Home

• Signature Lifetime Craftsmanship Warranty: Our workmanship is covered for the life of the installation.
• Annual Safety Check: Site test of electrical safety devices, panel inspection, and GFCI/disconnect testing.
• Annual Panel Tune‑Up: Re‑tension lugs and breaker terminals, re‑apply antioxidant, perform a voltage variance test, vacuum and clean the panel, apply electrical cleaner, and reseal penetrations.
• Dispatch Hold: During active membership, we waive the dispatch fee if you have a concern and need us to come out.
