Project overview in Lincolnton, NC
Our Charlotte branch completed a comprehensive 200A electrical panel upgrade and whole‑home surge protection for homeowner Nestor carvajal in Lincolnton, NC. On March 30, 2026, technician Christian Cedillos replaced an aging Westinghouse panel with a modern 200A Siemens load center, updated the grounding system, installed an exterior main disconnect, and carefully labeled every circuit for clarity.
This Panels & Service Upgrades project falls under our Electrical Panel Upgrades service category and was performed by our Matthews‑based team serving the greater Lincolnton area.
What we upgraded
- 200A main panel replacement: Removed the existing Westinghouse panel and installed a new Siemens 200A indoor panel, properly grounded and bonded.
- All new breakers: Installed new branch circuit breakers for reliable protection and performance.

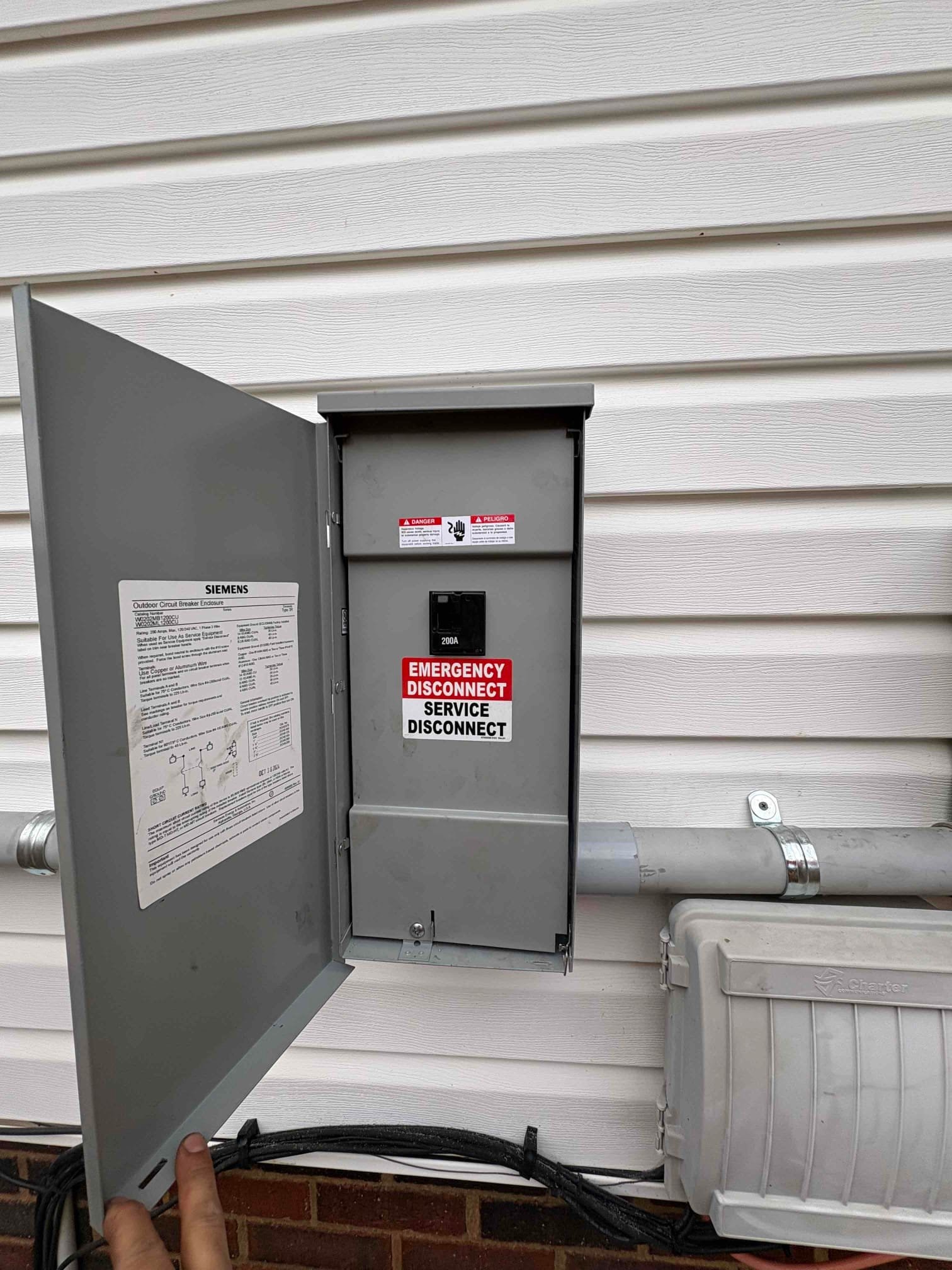

- Exterior main disconnect (code‑required): Added a 200A outdoor service disconnecting means for enhanced safety and first‑responder access.
- Updated grounding system: Brought grounding and bonding to current standards for better fault protection.
- Surge protection device: Installed whole‑home surge protection to help safeguard appliances and electronics.
- New feeders to the panel: Replaced and routed feeders from the exterior disconnect to the interior panel with an equipment grounding conductor.
- Circuit labeling: Clearly identified each circuit to simplify future service and homeowner use.
Installed components and breaker configuration
- Main Panel – 200A (indoor): Brought up to current electrical code; grounded, bonded, and reconnected existing circuits.
- Breakers: 6 × 15A standard (lighting/general use), 6 × 20A standard (small appliance circuits), 2 × 30A double‑pole, and 2 × 20A double‑pole for larger loads.
- 200A outdoor disconnect: Provides the service main outside; neutrals and grounds separated in the interior panel as required.
- Feeder conductors: New feeder run from the disconnect to the indoor panel with a dedicated grounding conductor.
- Surge protection device: Whole‑home protection integrated at the service equipment.
We coordinated permitting and inspection to ensure a smooth, code‑compliant upgrade from start to finish.
Why this upgrade matters
A modern 200A panel provides the capacity and safety features today’s homes need—especially when adding HVAC upgrades, EV charging, kitchen remodels, or outdoor equipment. Replacing outdated equipment reduces nuisance tripping, hot spots, and compatibility issues, while surge protection helps shield sensitive electronics from voltage spikes.
As local jurisdictions adopt newer editions of the National Electrical Code, requirements like an exterior service disconnect and properly separated neutrals/grounds inside the panel are essential. Clearly labeled circuits also simplify maintenance and help first responders or service technicians act quickly.
Local expertise you can trust
This Lincolnton project was completed by Christian Cedillos from our Charlotte branch, serving homeowners throughout Lincolnton and nearby communities from our Matthews location. Our team specializes in Panels & Service Upgrades and Electrical Panel Upgrades, delivering neat workmanship, clear communication, and compliant installations.
Customer feedback
Nestor carvajal praised our work on this project. Read their Google review: See the review on Google.
Thinking about an electrical panel upgrade in Lincolnton?
- Frequent breaker trips or warm breakers/panel cover
- Adding large appliances, HVAC, or an EV charger
- Outdated or discontinued panel brands
- Insufficient spaces for new circuits
- Lack of whole‑home surge protection
If any of these sound familiar, our Charlotte team can assess your system and recommend the right upgrade path for safety, capacity, and code compliance.
