Call 855-502-2244Professional 200A Panel Upgrade in Hillsborough, NC
Touchstone Electric’s Raleigh team completed a comprehensive 200-amp main electrical panel replacement and surge protection upgrade for Smart Home Comfort in Hillsborough, NC on July 30, 2026. Lead technicians Ryan Balgobin and Gustavo Peralta handled the project from permitting through final safety checks to bring the home’s service equipment up to current standards.
What We Completed
- Permit and coordination: Filed the electrical permit with the county and coordinated inspections.

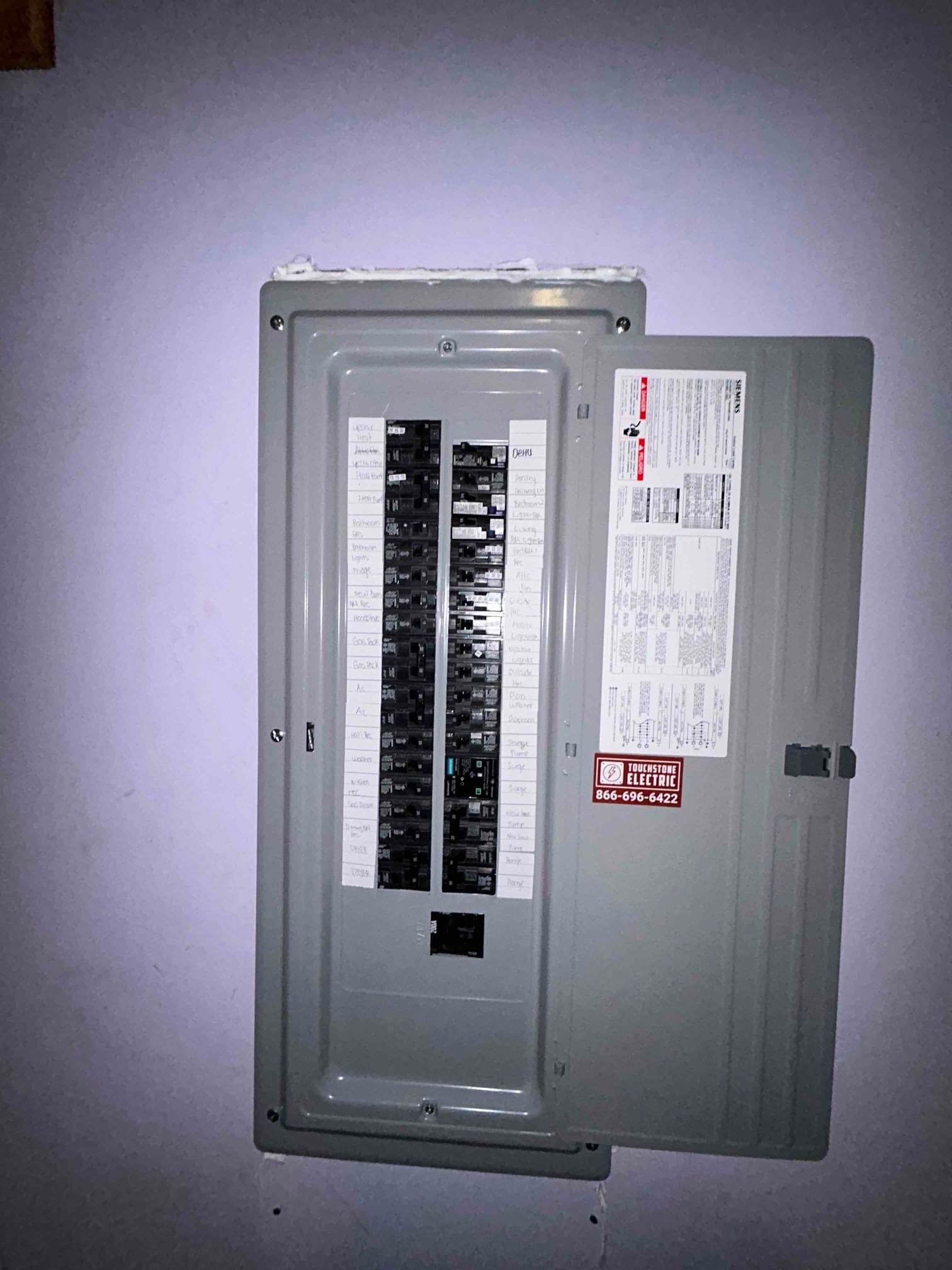

- Main panel replacement (200A, indoor, copper bus): Removed the existing panel and installed a new copper-bus main panel. Grounded and bonded the panel, reconnected the service entrance conductors, reconnected existing branch circuits, replaced the main lug, and provided clear circuit labeling.
- Whole-home surge protection: Installed a service-level surge protective device to divert damaging voltage spikes to ground and help protect connected equipment throughout the home.
- Breaker upgrades and additions:
- 2 × 50A Standard breakers
- 4 × 30A Standard (double-pole) breakers
- 1 × 20A Standard (double-pole) breaker
- 9 × 20A Standard breakers
- 7 × 15A Standard breakers
- 4 × 20A AFCI breakers
- 1 × 15A AFCI breaker
- New grounding system: Drove new ground rods and connected the grounding electrode conductor back to the main service panel (up to 25 ft), securing all terminations.
- Power management during outage: For this project, a generator was made available for limited power while the service was de-energized.
Signature Lifetime Craftsmanship Warranty was included with this installation.
Why Choose a Copper-Bus 200A Panel?
A copper-bus main panel offers robust conductivity and heat tolerance. The installed panel includes a 50-year transferable warranty on the copper panel. Compared with aluminum, copper’s higher melting point provides an added margin of durability under load. Upgrading to a modern 200A panel also supports today’s higher household electrical demands and provides a safer, cleaner platform for future circuits and smart-home additions.
Whole-Home Surge Protection Benefits
The installed surge protector is designed to shunt excess voltage from events like lightning-induced surges, utility fluctuations, or motor-driven equipment cycling. It carries a 10-year, up to $100,000 covered-equipment warranty (secondary to your homeowner’s insurance; direct lightning strikes are excluded). Covered equipment categories include major appliances, interior HVAC equipment, wiring, outlets/switches, electrical system components (such as breakers), and many hardwired devices (for example, built-in microwaves, furnaces, air handlers, evaporator coils, hardwired ranges, landscape lighting, and home lighting) when protected by a properly connected Boltshield SPD. Security systems and medical equipment are not covered by this warranty.
AFCI Safety and Code Notes
As local inspectors continue implementing 2020 NEC requirements, certain circuits may require AFCI protection. Installing AFCI breakers can reveal preexisting issues—such as shared neutrals—that may cause immediate tripping. Resolving these conditions can require diagnostic time to locate and correct wiring anomalies. Our team informed the homeowner of these possibilities and installed the specified AFCI protection to enhance fire safety on applicable circuits.
Permitting, Inspection, and Craftsmanship
Our Raleigh branch obtained the electrical permit and prepared the installation for inspection. Only the electrical permit was included for this project; if a jurisdiction requires additional non-electrical permits (e.g., zoning or historic approvals), those are handled separately. As with every panel and service upgrade we perform, the work was completed with meticulous attention to grounding, bonding, conductor terminations, and labeling—backed by our Signature Lifetime Craftsmanship Warranty.
Serving Hillsborough from Our Raleigh Team
Whether you’re planning a panel change, service upgrade, or surge protection in the Hillsborough area, Touchstone Electric’s Raleigh electricians deliver code-compliant, clean workmanship and clear communication from start to finish.
Customer Feedback
Smart Home Comfort praised our team with a positive review following this project in Hillsborough. We appreciate the trust and are proud to help keep their home’s electrical system safer and more reliable.
