200A Electrical Panel Upgrade and Surge Protection in Charlotte, NC

Touchstone Electric’s Charlotte team completed a full 200-amp outdoor panel replacement for Robert Price in Charlotte, North Carolina. Led by technician Jose Rodriguez, this Panels & Service Upgrades project modernized an obsolete panel that had no remaining capacity for new loads like an EV charger or whole-home surge protection. The scope included a new main panel, updated breakers (including AFCI protection where required), a GFCI receptacle with a weatherproof bubble cover, grounding upgrades, and a dedicated surge protective device. Completed November 2025, the work was permitted and coordinated for inspection through the county.

Why this upgrade was needed

The existing panel was out of space and not aligned with current safety and capacity expectations. With plans for higher-demand equipment (such as a future EV charger) and the desire to protect valuable electronics and appliances, a 200-amp electrical panel upgrade offered the best path forward. This upgrade improves reliability, creates room for dedicated circuits, and brings the service equipment in line with today’s electrical codes.

What we installed on this project

200A Outdoor Main Panel (Aluminum Bus): We replaced the obsolete panel, bonded and grounded the new equipment, labeled circuits, and reconnected the service entrance conductors and existing branch circuits.
New Circuit Breakers: We installed a balanced mix of breakers sized for typical household loads: one 60A, three 30A double-pole, one 40A, four 20A standard breakers, and three 15A AFCI breakers to meet areas where the inspector applies NEC 2020 requirements.
Whole-Home Surge Protection: A dedicated surge protective device diverts excess voltage to ground, helping protect the home’s electrical system and connected equipment from lightning-related surges, grid fluctuations, and appliance cycling. This SPD includes 10-year, $50,000 manufacturer coverage for eligible appliances when properly connected. Coverage is secondary to your insurance policy and excludes direct lightning strikes. Security systems and medical equipment are not included.

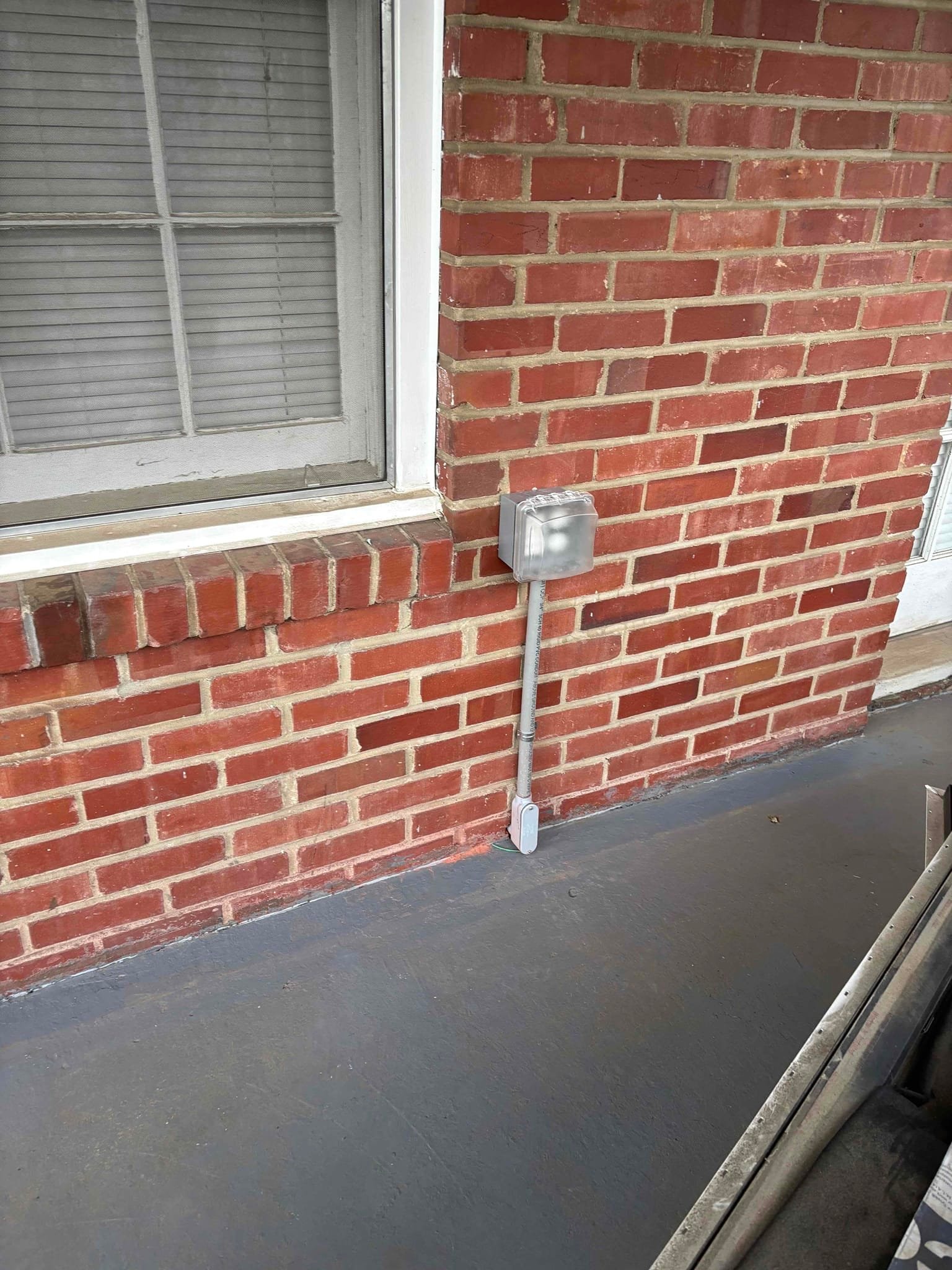

GFCI Receptacle with In-Use Bubble Cover: We installed a GFCI outlet and a weatherproof cover to help maintain safety and code compliance even when the receptacle is in use outdoors.
Grounding System Upgrade: We drove a new ground rod and installed a continuous grounding electrode conductor back to the main service panel (up to 25 feet), improving fault-clearing performance and overall system safety.
35 ft of #6 SEU (3-wire) Cable: Added capacity for future 60A loads such as an EV charger or other dedicated equipment, creating flexibility as the home’s electrical needs grow.
Permitting and Inspection Coordination: Our team filed the electrical permit with the county and coordinated inspection. During the panel changeover, we made a generator available for limited power use to minimize disruption.

Code, AFCI, and safety notes

As NEC 2020 is adopted by local jurisdictions, inspectors may require expanded AFCI protection in areas like living spaces and certain lighting/receptacle circuits. AFCI breakers can occasionally trip if there is a preexisting wiring issue (for example, a shared neutral). Resolving such conditions may involve additional diagnosis to isolate and correct the wiring. Our goal is to deliver a safe, code-compliant system that performs reliably for years to come.

Project benefits for the homeowner

Added capacity: A modern 200A panel with room for future circuits.
Better protection: Whole-home surge protection and GFCI/AFCI safety upgrades.
Improved grounding: New rod and continuous conductor for safer fault clearing.
Smoother upgrades: Prepped for higher-demand equipment like a 60A EV charger.
Professional process: Handled permitting and inspection coordination from start to finish.

Serving Charlotte from our Matthews branch

Touchstone Electric proudly serves Charlotte and the surrounding communities from our Matthews branch. If you’re planning an electrical panel upgrade, surge protection, or EV charging circuit, our local team can help you evaluate your current capacity, plan for future loads, and complete a code-compliant installation with minimal downtime.
