Our Charlotte branch team out of Matthews completed a comprehensive service upgrade for a Waxhaw homeowner on June 25, 2026. Led by technicians Alex Bishop, Anthony Vazquez, and Danny Bishop, this project brought the home’s electrical service up to a full 200 amps with a new exterior meter/panel combo and a properly raised 200A interior panel in the laundry room.
This page highlights the scope of work, safety upgrades, and permitting steps taken to deliver a clean, code-compliant installation under our Panels & Service Upgrades and Electrical Panel Upgrades services.
Project Scope and What We Installed
- Exterior 200A meter/panel combo: Installed an over/under configuration with feed-through lugs to serve the interior distribution, coordinated with the utility for power drop and reconnection.

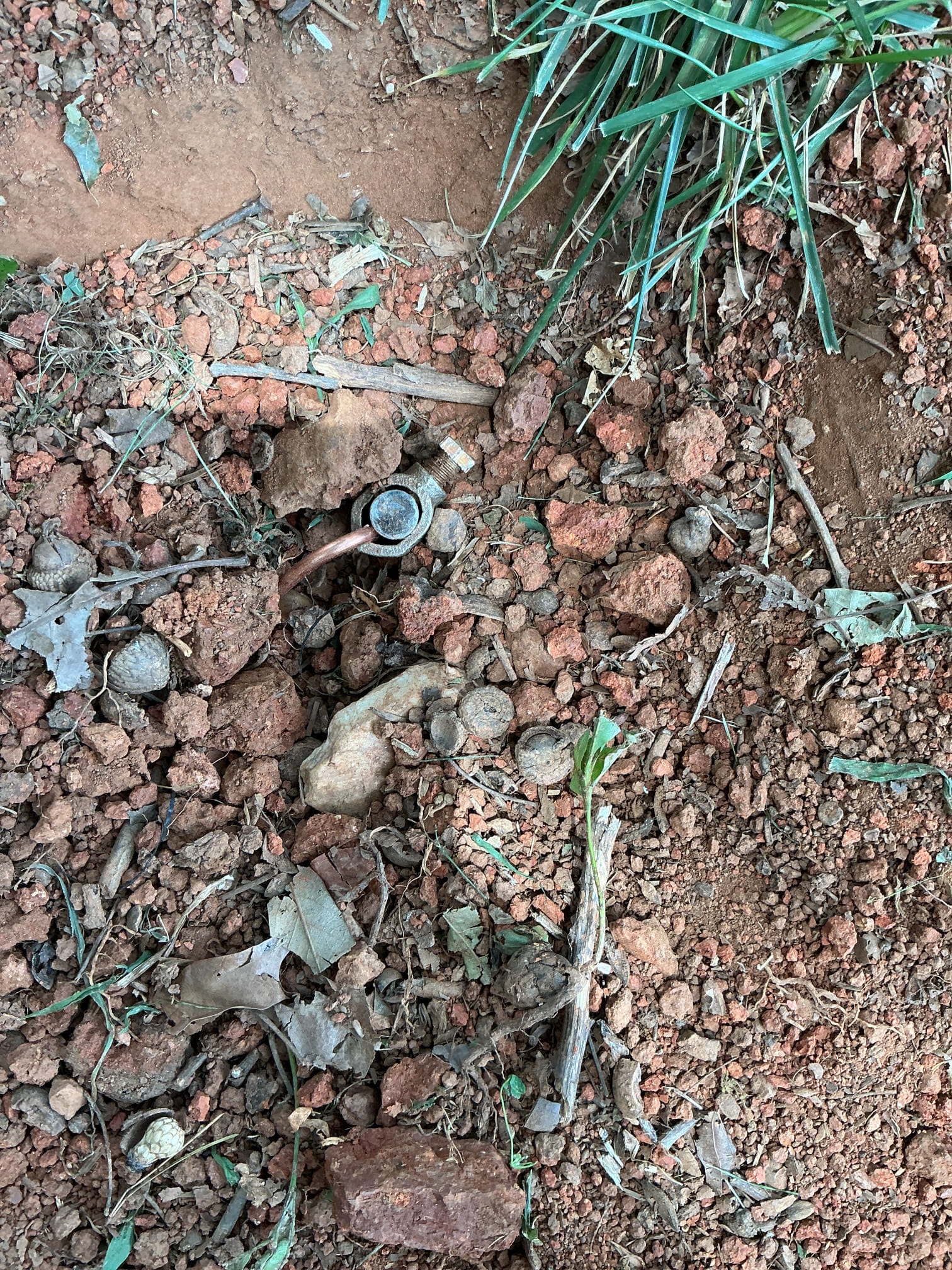

- Grounding and bonding: Drove ground rods and installed grounding electrode conductors; bonded and grounded the new equipment to current code standards.
- Interior 200A main panel: Furnished and installed a new aluminum-bus indoor panel and raised it to meet current height and working-clearance requirements in the laundry room. Reconnected the service entrance conductors and existing branch circuits, and provided a clearly labeled directory.
- New breakers installed:
- 9 × 15A standard breakers for lighting and general circuits
- 6 × 20A standard breakers for small appliance circuits
- 1 × 30A double-pole breaker for higher-load equipment
- 2 × 50A standard breakers for large appliances or EV/heat applications
- Permitting and inspection: Filed the electrical permit with the county and scheduled the final inspection.
- Skilled manpower: Additional on-site support from an electrical apprentice under licensed supervision to keep the project efficient and organized.
Code Compliance and Safety Upgrades
Raising the interior panel was a key safety improvement to align with current mounting height and workspace rules. The new grounding and bonding work, along with a neatly organized and labeled panel, supports better fault clearing and long-term reliability.
As inspectors continue to adopt NEC 2020 requirements in our area, some homes may be required to upgrade certain circuits to AFCI protection. When AFCI breakers are added, preexisting wiring issues such as shared neutrals can sometimes cause immediate tripping and may require diagnostic time to resolve. Our team advises homeowners of these conditions and provides solutions that meet current code while minimizing disruption.
Permitting and Utility Coordination in Waxhaw
Touchstone Electric handled the county electrical permit and coordinated with the utility for the service interruption and reconnection. Please note that the permit included on projects like this is for electrical work only. If a jurisdiction requires additional non-electrical permits (e.g., Historic Preservation, Environmental/Septic, Zoning, or separate subcontractor permits), those are not included; we inform you of any additional requirements and can assist with next steps as needed.
During the outage window, we coordinate scheduling to reduce downtime. For homeowners who need limited temporary power, a generator can be made available upon request.
Results for This Waxhaw Home
The property now benefits from a modern 200A service with dependable distribution, improved safety grounding, and a cleanly raised interior panel that creates room for present and future needs like HVAC upgrades, kitchen appliances, or EV charging. After the work was completed, customer Jacob Broussard praised our team with a positive review of the experience.
Why Waxhaw Homeowners Choose Touchstone Electric
- Local expertise: Served by our Charlotte team based in Matthews, we understand regional code enforcement and utility processes in Waxhaw, NC.
- Permits and inspections handled: We manage the electrical permit and schedule inspections for a streamlined project.
- Clean, safe, and organized work: Clear labeling, proper bonding/grounding, and attention to panel height and workspace.
- Future-ready solutions: 200A capacity with room for additional circuits and modern electrification.
Planning a 200 amp service or electrical panel upgrade in Waxhaw, NC? Our team is ready to help you design a safe, code-compliant solution that fits your home’s needs.
