Call 855-502-2244Permitted 200-Amp Electrical Service Upgrade in Goldsboro
Touchstone Electric completed a comprehensive electrical panel and meter upgrade for a home in Goldsboro. Our Raleigh branch team, including Gray Gorrell, Scottie Harris, and Gustavo Peralta, replaced the existing meter and main panel equipment with a new 200-amp meter/panel combination designed to provide dependable capacity for the home’s electrical needs.
This project was completed with an electrical permit and included coordination for the required power disconnect and restoration process. A service upgrade is an important investment for homes with aging electrical equipment, growing appliance loads, planned renovations, or newer high-demand equipment such as HVAC systems, electric ranges, water heaters, spas, or EV chargers.
New Meter/Main Panel and Circuit Breaker Protection

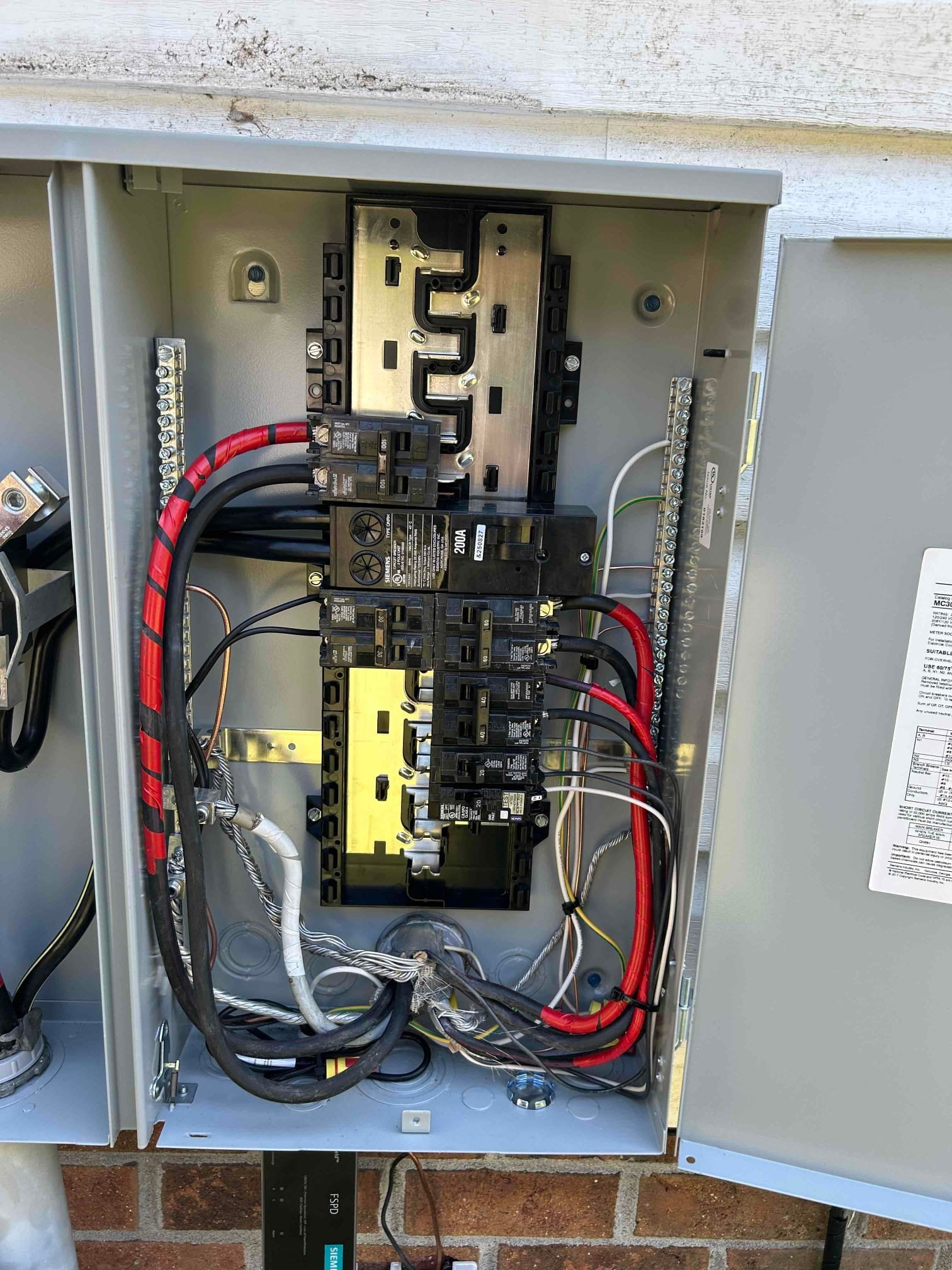

The installation included a side-by-side 200-amp meter and main panel combination with feed-through lugs. The new panel features an aluminum bus bar backed by a 20-year transferable warranty. New breakers were also installed to support the home’s electrical distribution, including breakers suitable for larger dedicated loads, a subpanel connection, and small-appliance circuits.
Upgrading the main electrical panel can help create a more organized, serviceable electrical system while providing room for appropriately sized circuits. Proper breaker selection is essential because breakers are designed to protect wiring and connected equipment from overload conditions.
- Replacement of the meter and main electrical panel
- New 200-amp meter/panel combination with feed-through lugs
- Installation of 100-amp, 80-amp, 40-amp, and 20-amp breakers as specified for the project
- Electrical permit filing for the panel upgrade work
- Scheduling coordination with the power provider for the service outage
Grounding Improvements for the New Electrical Service
As part of the Goldsboro panel upgrade, our electricians installed new ground rods and grounding electrode conductors. Grounding is a critical part of a modern electrical service because it provides an intentional path to help manage certain electrical faults and excess voltage conditions. The grounding connections were run from the rods to the main electrical service equipment using suitable clamps and secured connections.
Correct grounding work is especially important when replacing a meter and main panel, since the grounding system and service equipment need to work together as part of the home’s overall electrical safety infrastructure.
Whole-Home Surge Protection Added at the Main Panel
Touchstone Electric also installed a whole-home surge protection system at the main electrical panel. A panel-mounted surge protective device is intended to divert excess voltage to ground before it can travel through the home’s electrical system. This can help reduce exposure to voltage spikes associated with utility fluctuations, electrical equipment cycling, and certain surge events.
Routine electrical surges can contribute to wear on the internal components of appliances and electronics over time. Whole-home surge protection adds another layer of protection for eligible hardwired and household equipment connected to a properly protected electrical system.
The installed surge protector includes a $100,000, 10-year connected-equipment warranty, subject to the manufacturer’s terms, conditions, and exclusions. Claims are secondary to existing insurance coverage, and direct lightning strikes are excluded. Security systems and medical equipment are also excluded from covered equipment under the stated warranty terms.
Professional Electrical Panel Upgrades in Goldsboro
For this completed project, Touchstone Electric provided a permitted 200-amp service upgrade, updated grounding, new breaker protection, and whole-home surge protection for improved electrical capacity and protection. The work also included our Signature Lifetime Craftsmanship Warranty.
If your Goldsboro home has an older electrical panel, limited breaker space, frequent breaker concerns, or upcoming electrical upgrades, a professional panel evaluation can help determine whether a service upgrade is appropriate for your needs.
