200 Amp Electrical Panel Upgrade in Charlotte, NC

Touchstone Electric’s Charlotte branch completed a full 200 amp electrical panel upgrade with surge protection and a new grounding system for homeowner Patricia Kracke in Charlotte, NC. The project was completed on August 26, 2025 by our licensed technicians Robert Sloan and Theo Coetsee.

This service brought the home’s power distribution up to current code, improved capacity and safety, and added comprehensive surge protection for sensitive electronics and appliances.

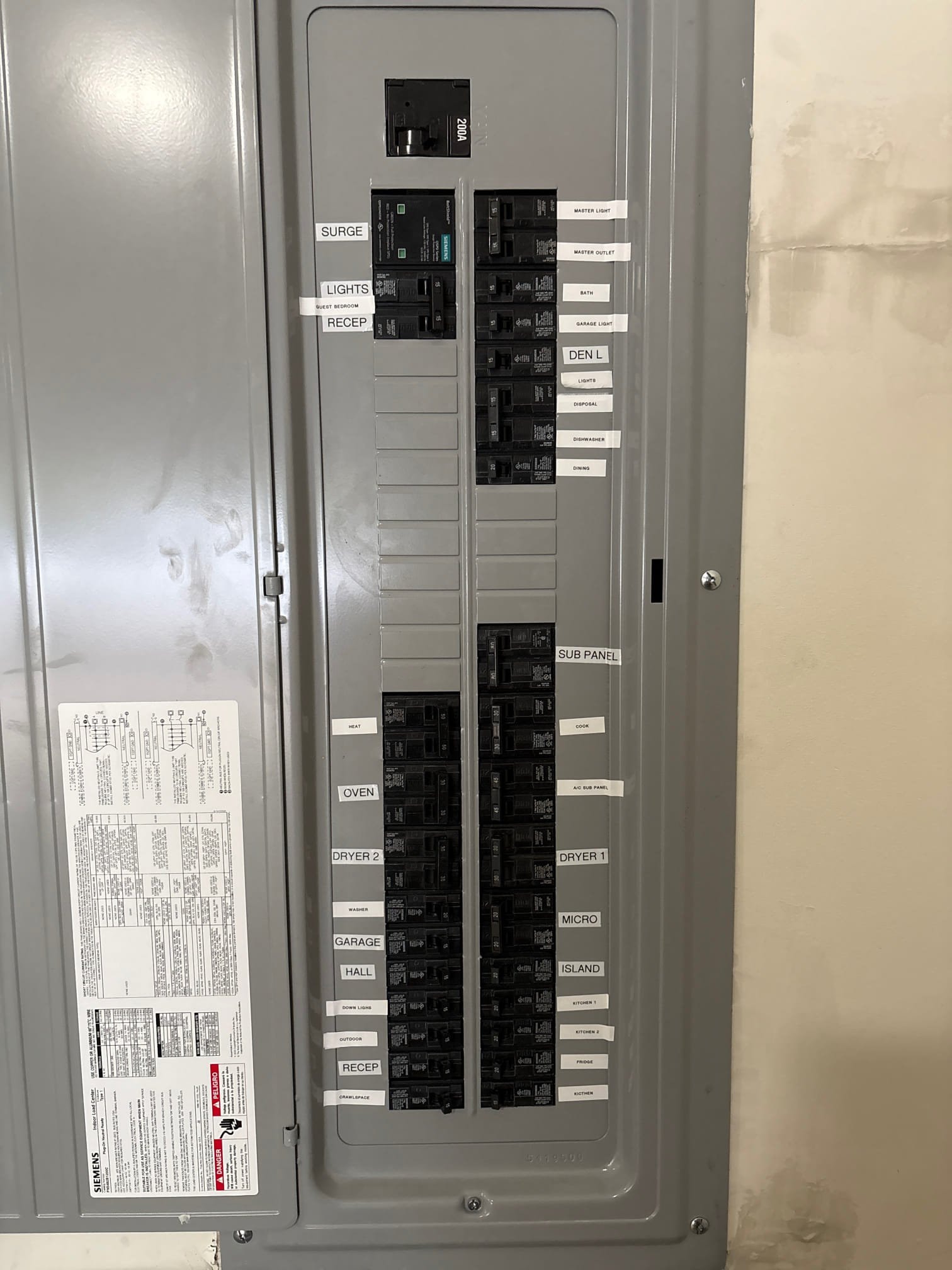

New 200A copper indoor main panel installed and labeled
Whole‑house surge protector added for system-wide protection
Grounding and bonding system upgraded to meet code
All new breakers installed and circuits organized
Double‑tapped circuits split to eliminate potential hazards
Permitted and inspected for full compliance
Limited power supported during the outage with a temporary generator option

What We Installed

We supplied and installed a 200 amp copper main panel and brought the service up to current electrical code. The panel was grounded and bonded, the service entrance conductors were reconnected, and all existing circuits were re‑terminated cleanly and clearly labeled for future maintenance.

Whole‑house surge protector: Protects the entire home; includes a $10k warranty on the surge protector.
Copper panel benefits: 50‑year warranty on copper panels and a higher melting point compared to aluminum designs.
Breaker updates: All new breakers sized and installed for each circuit.

Breakers and Circuits Installed

10× 15A Standard – Lighting and standard branch circuits, including bathrooms (per 2020 code requirements for lighting locations)
9× 20A Standard – Small appliance and general‑use receptacle circuits
1× 80A Standard – Large load such as a range, furnace/air handler, or small subpanel
3× 30A Double‑Pole – Typical for dryer, water heater, A/C condenser, spa, or EV charger circuits
2× 15A AFCI – Arc‑fault protection for living areas as required by NEC 2020

As Charlotte area inspectors continue implementing NEC 2020, some circuits require AFCI protection. AFCI breakers can reveal pre‑existing issues such as shared neutrals, which may require diagnostic time to correct. Our team advised the homeowner of these possibilities and installed AFCIs where required.

Clean, Labeled, and Code‑Compliant

We performed a full Panel Rejuvenation to ensure long‑term reliability:

Vacuumed and cleaned the new panel enclosure
Re‑tensioned all lugs and breaker terminations
Confirmed separate and properly landed neutrals and grounds (one conductor per lug)
Checked for water intrusion and re‑sealed any openings
Verified correct utility voltage and applied antioxidant where needed
Tested GFCI/AFCI functions with homeowner consent

All work was permitted and inspected, giving the homeowner documented assurance that the installation meets current electrical safety standards.

Why Choose a Copper 200A Panel

A copper bus panel offers robust performance and longevity. The installed panel carries a 50‑year warranty, significantly longer than many aluminum bus alternatives, and copper’s higher melting point adds resilience under heavy loads. Combined with the whole‑home surge protector, the system is better equipped to handle everyday demand and unexpected voltage spikes.

Local Service from Our Charlotte Branch

Touchstone Electric serves Charlotte, NC from our Matthews‑area branch. We specialize in Panels & Service Upgrades and Electrical Panel Upgrades, delivering neat workmanship, clear labeling, and code‑compliant results on every project.

After the upgrade, the homeowner praised our team in a post‑project review, reflecting our commitment to quality and communication throughout the process.

Considering a Panel Upgrade in Charlotte?

If your home needs more capacity, safer grounding, or modern protections like whole‑house surge suppression and AFCI coverage, our Charlotte team can help. We handle permitting, coordinate inspections, and minimize downtime during change‑outs—so you get a safer, more reliable electrical system with professional documentation.
