Project overview: 200 amp electrical panel upgrade in Matthews, NC
On August 15, 2024, our Charlotte branch completed a code-compliant 200 amp main breaker panel upgrade for homeowner Amy Roberts in Matthews, NC. Lead technician Ben Lively installed a new indoor main panel in the home’s playroom to improve safety, reliability, and capacity for present and future electrical needs.
This project is part of our Panels & Service Upgrades and Electrical Panel Upgrades services for homeowners across Matthews.
Scope of work performed

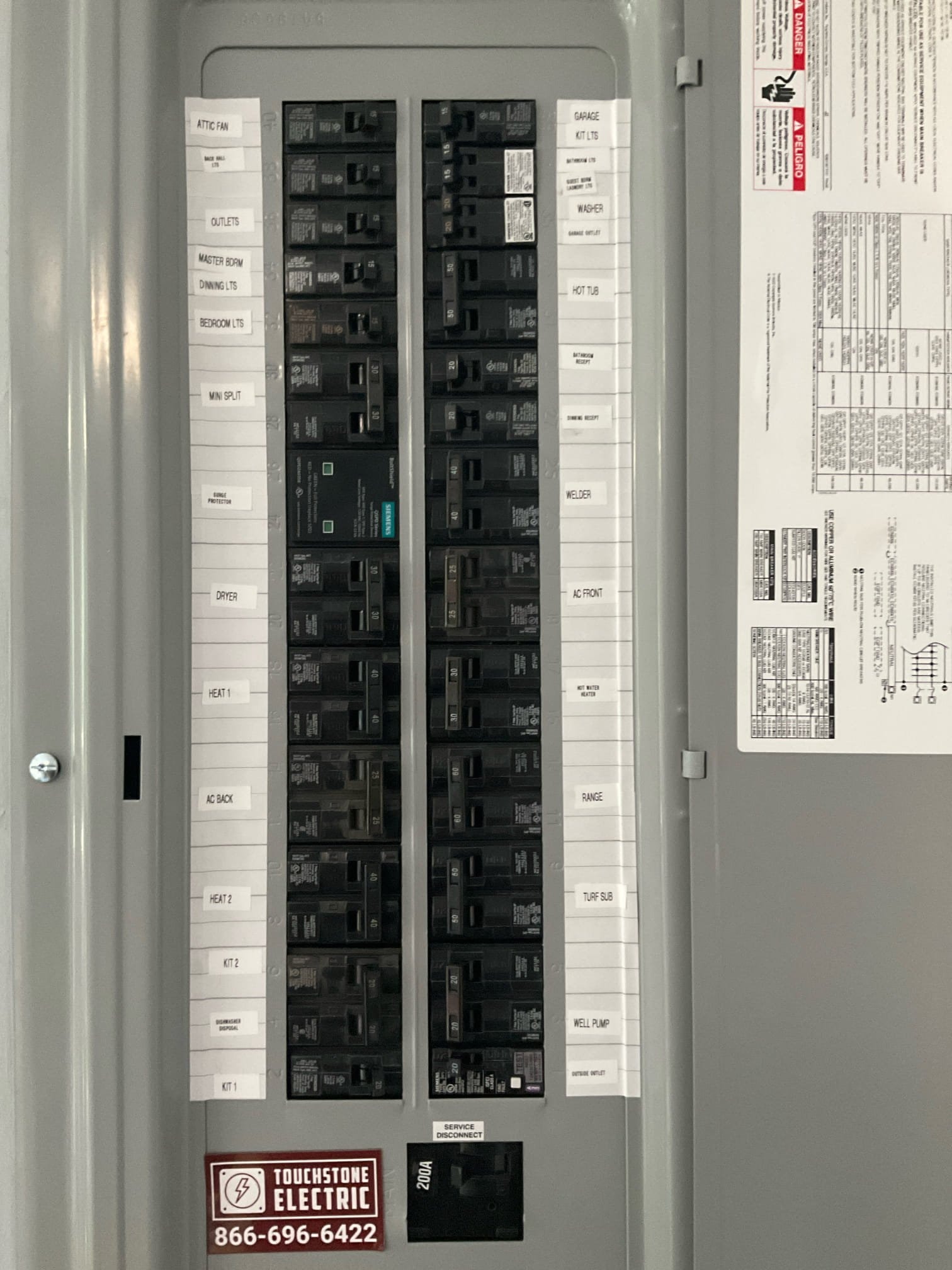

- Furnished and installed a new 200 amp interior main breaker panel; labeled all circuits for clarity.
- Grounded and bonded the panel to current electrical code standards.
- Reconnected the service entrance conductors and existing branch circuits.
- Installed SER 4/0 (4‑wire) service entrance cable as needed for the new panel.
- Drove a second ground rod to enhance the grounding electrode system.
- Pulled the required electrical permit with the county and coordinated inspection.
To minimize disruption, power was temporarily disconnected only during the switchover. A generator was made available for limited essential power while work was completed.
Breakers and protection installed
To match the home’s circuits and modern protection requirements, our team installed a full set of new breakers, including:
- Standard 15A and 20A breakers for lighting and small-appliance circuits.
- One 20A GFCI breaker for locations that require ground-fault protection (e.g., bathroom, laundry, garage, and exterior receptacles).
- Dedicated double‑pole breakers at 25A, 30A, 40A, and 50A for equipment such as HVAC, water heaters, ranges, spas, and potential EV charging loads.
The new panel includes a whole‑home surge protective device with a $10,000 warranty for added protection. The panel itself is backed by a 20‑year transferrable warranty.
Installing a panel in a finished playroom
Because the panel is located in a finished playroom, careful planning ensured proper working clearances and a clean fit. Where necessary, small sections of drywall were cut to remove the old cabinet and set the new one. Please note: Touchstone Electric’s scope does not include drywall repair or painting around the panel opening.
Permitting and local code compliance in Matthews
Touchstone Electric handled the electrical permit filing for this upgrade in Matthews, NC, and coordinated the inspection process. Local jurisdictions may require additional non‑electrical permits (such as historic, environmental, septic, or zoning) depending on the property and project scope. If separate permits are needed beyond the electrical permit, we inform homeowners and can provide guidance on next steps.
Why Matthews homeowners choose Touchstone Electric
- Local expertise from our Charlotte branch proudly serving Matthews, NC.
- Code‑compliant panel upgrades with thorough grounding, bonding, and circuit labeling.
- Thoughtful planning to minimize downtime, with temporary power available during changeover.
- Long‑term peace of mind with panel and surge protection warranties.
After completion, Amy Roberts praised our team with a Google review. Read it here: View Amy’s review on Google.
Considering a 200 amp panel upgrade in Matthews?
If your home is experiencing frequent breaker trips, you’re adding high‑demand appliances, or planning for EV charging, a professionally installed 200 amp panel can provide the safer, more reliable power you need. Contact Touchstone Electric to schedule an assessment for your electrical panel upgrade in Matthews, NC.
