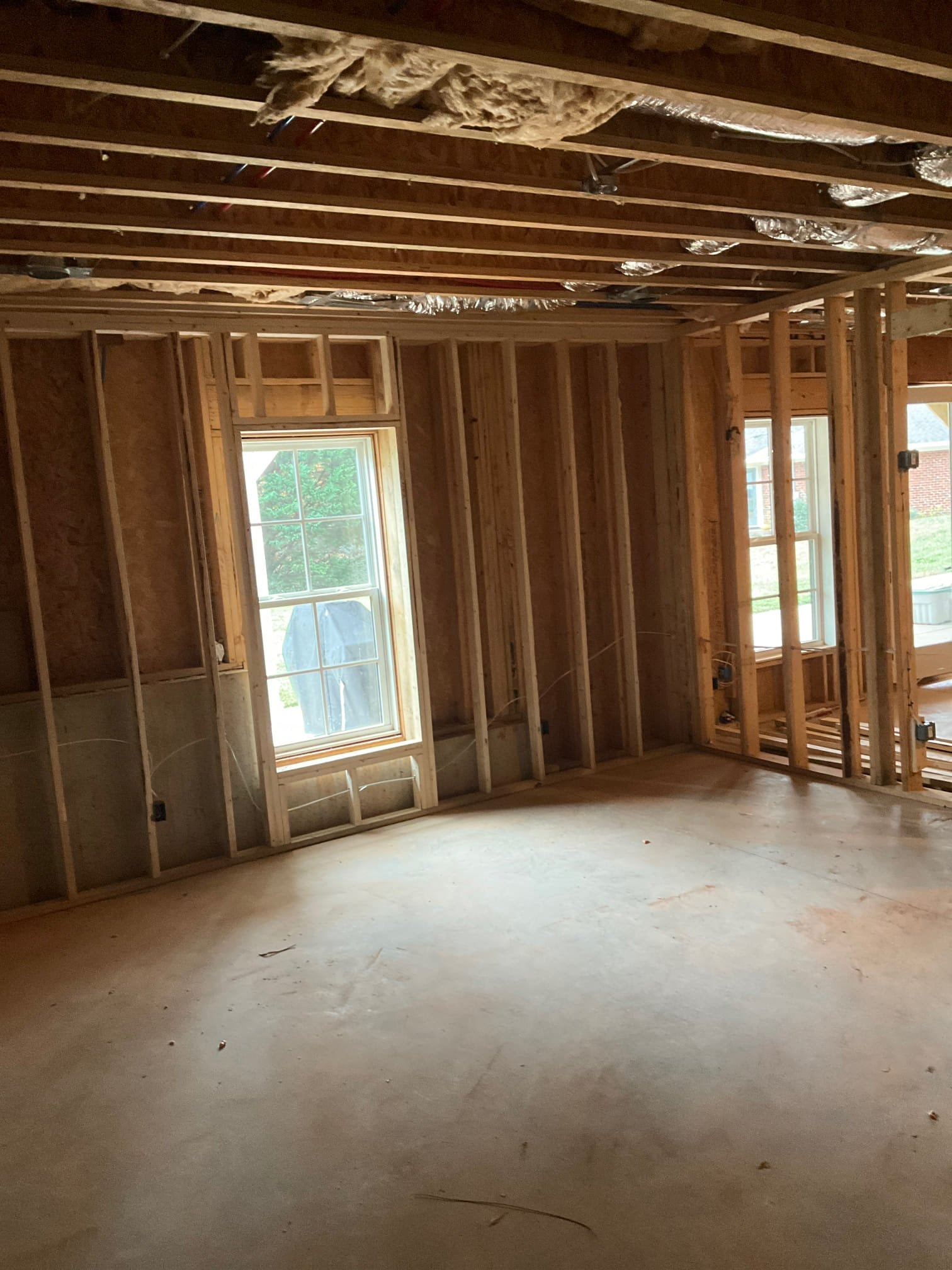

100A Subpanel Installation with Lighting Upgrades in Charlotte

Touchstone Electric’s Charlotte team, operating from our Matthews branch, completed a comprehensive Panels & Service Upgrades project for Boon & Company Construction on April 19, 2024. Led by technician Danny Bishop, this job combined a new 100-amp interior subpanel with extensive lighting, switching, and dedicated circuit upgrades to modernize the space and improve safety and efficiency.

After completion, the customer praised our work with a review. Read their Google review.

Scope of Work

We delivered a full electrical package designed to meet current code, support new equipment loads, and enhance everyday functionality throughout the property in Charlotte, NC.

100A Interior Subpanel: Furnished and installed a new 100-amp subpanel to distribute power reliably to new circuits and dedicated loads.
LED Recessed Lighting: Wired, furnished, and installed seventeen (17) 6-inch recessed cans with integrated LED trims for bright, efficient illumination.
Under-Cabinet Lighting: Wired, furnished, and installed two (2) 3-foot under-counter fixtures to improve task lighting at work surfaces.
Closet Lighting: Wired, furnished, and installed two (2) 2-foot LED strip fixtures, one in each of two closets.
Switches and Outlets: Wired all switches per scope and provided white toggle switches and standard outlets for a clean, consistent finish.
TV and Specialty Outlets: Wired to code for outlets and included provisions for three (3) TV locations.
Dry Bar and Puck Lights: Installed two (2) under-mount outlets at the dry bar and wired/installed builder-supplied puck lights.
Dedicated Circuits: Furnished and installed dedicated outlets for key equipment, including the beverage center, dryer, washer, 5 kW electric heat, A/C unit, sewage pump, dehumidifier, and treadmill.
Life Safety Devices: Wired, furnished, and installed two (2) smoke detectors and one (1) combination smoke/CO unit.
Ceiling Fan Preparation: Wired and braced for three (3) ceiling fans to ensure safe support and future-ready connections.

Note: Homeowners provided any ceiling fans and additional light fixtures not listed above. The builder supplied the bathroom exhaust fan, which we integrated per scope.

Code Compliance and Quality

Our team ensured all wiring, device placement, and circuit assignments followed current electrical code and best practices. The new 100A subpanel provides room for expansion and properly sized breakers for the added loads. LED fixtures were selected for long life, high efficiency, and consistent light output, while dedicated circuits help protect sensitive equipment and prevent nuisance tripping.

With properly braced fan boxes, clean switch layouts, and labeled circuits, this installation is built for performance, safety, and ease of future maintenance.

Why Charlotte Homeowners and Builders Choose Touchstone Electric

Local expertise: Our Matthews-based Charlotte branch understands local code requirements and typical project scopes for remodels and upgrades.
End-to-end solutions: From subpanels to lighting design and dedicated circuits, we handle complex electrical packages efficiently.
Clear coordination: We work closely with homeowners and builders, incorporating supplied fixtures and providing neat, on-schedule installations.
Professional workmanship: Attention to detail on device placement, labeling, and fixture alignment ensures a clean finish.

Project Notes and Scheduling

Any change orders were documented and approved prior to work. Billing followed standard progress milestones at the rough-in and trim phases. This approach keeps the project organized and transparent from start to finish.

If you’re planning a subpanel installation, lighting upgrades, or dedicated circuits in Charlotte, NC, our team is ready to help. Contact Touchstone Electric’s Charlotte branch to discuss your scope, timelines, and fixture selections.
