Project overview
On September 9, 2024, our Charlotte team (Matthews branch) completed a 100-amp subpanel installation for Franco in Charlotte, NC. Led by technician Christian Cedillos, this Panels & Service Upgrades project added a dedicated subpanel to reliably power a home sauna and an EV charging circuit—delivering capacity, convenience, and room for future expansion.
To protect the home and meet local code requirements, we routed a new feeder along the exterior wall at the back side of the pool using outdoor-rated conduit and scheduled all required inspections through an electrical permit.
Scope of work
- 100A subpanel installation: Installed a compact indoor-rated subpanel (up to 125A) with space for multiple branch circuits to support the sauna and EV charging needs.
- Feeder protection: Set a 100-amp, 2-pole breaker at the main service to safely feed the new subpanel.

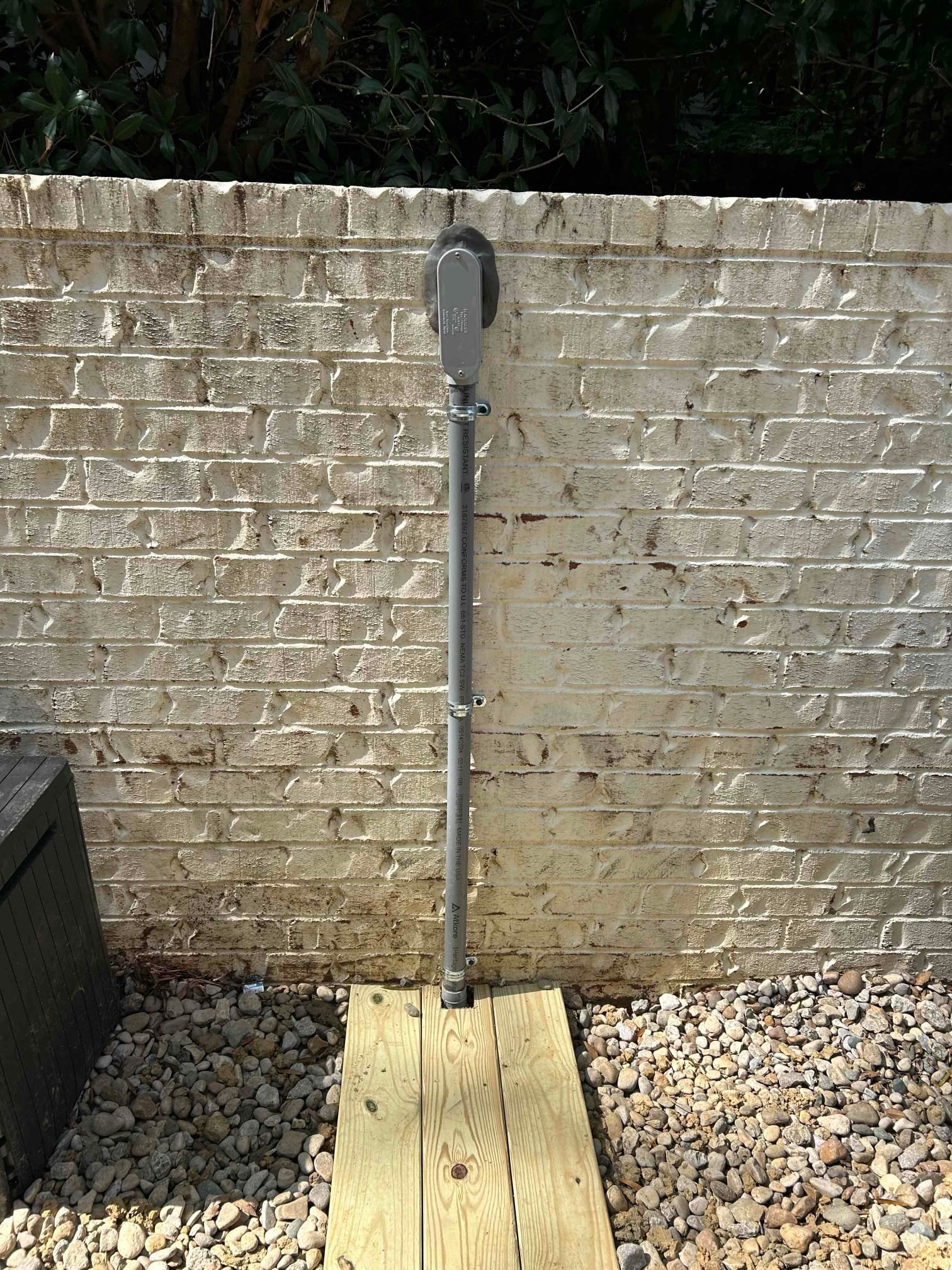

- Exterior conduit routing: Ran approximately 130 feet of 1-inch PVC conduit along the home’s exterior wall behind the pool for a clean, code-compliant pathway.
- Feeder conductors: Pulled THHN conductors through the new conduit to supply the subpanel with dependable capacity.
- Dedicated 40A circuit: Installed NM-B 8/2 wiring for a 40-amp branch circuit, protected by a standard 40A breaker for dedicated equipment.
- Permit and inspections: Filed the electrical permit and coordinated all required inspections with the local authority to verify compliance and safety.
How this upgrade helps
Reliable capacity for high-demand equipment: Saunas and EV chargers draw significant current. A dedicated 100A subpanel ensures there is stable, dedicated power for these loads without overburdening the main panel.
Cleaner, safer wiring path: The exterior run in 1-inch PVC conduit provides a weather-resistant, neatly mounted pathway along the back side of the pool, helping to protect conductors and maintain a tidy appearance.
Room to grow: With additional spaces in the subpanel, the homeowner can easily add future circuits—whether for outdoor amenities, workshop tools, or other home upgrades.
Code compliance and peace of mind
Every subpanel project we complete in Charlotte follows current electrical codes and best practices. For this job, our team handled permitting and scheduled inspections, ensuring the installation was reviewed and approved by the local authority. Proper overcurrent protection, conductor sizing for the application, and the use of outdoor-rated materials along the exterior run help deliver a safe, long-lasting result.
Why Charlotte homeowners choose us
- Local expertise: Completed by our Charlotte business unit and supported by our Matthews branch for quick response and familiarity with regional codes.
- Professional craftsmanship: Clean conduit runs, secure mounting, and organized panels that are built to last.
- End-to-end service: From planning and materials to permitting and inspections, we manage the details so your project stays on schedule.
Customer feedback
Franco praised our team with a review after the work was completed. Read the feedback on Google: See the customer review.
Considering a subpanel for EV charging or a sauna in Charlotte?
Touchstone Electric specializes in Panels & Service Upgrades and Subpanel Installation throughout Charlotte, NC. If you’re planning an EV charger, sauna, or other high-demand equipment, our licensed electricians can design and install a safe, expandable system that fits your home and future goals.
Contact our Charlotte team to discuss your project and get started with a code-compliant plan that keeps your home powered and ready for what’s next.
