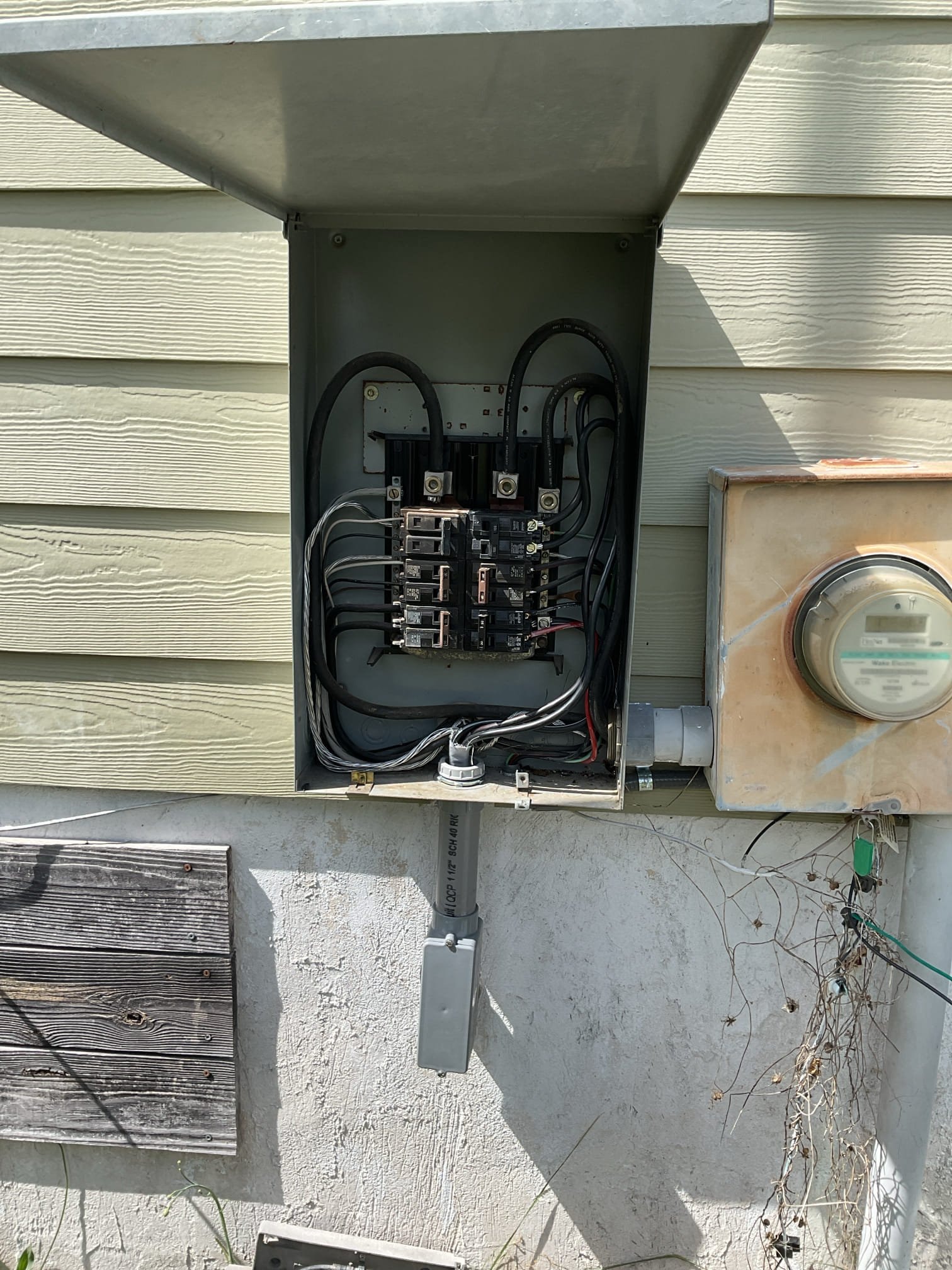

100A Shed Subpanel with Water Heater & Well Pump Circuits in Youngsville, NC
On May 7, 2025, our Raleigh branch completed a clean, code-focused subpanel installation for David & Jackie Klein in Youngsville, NC. Lead technician Francisco Martinez installed a 100-amp shed subpanel and ran dedicated 240V circuits to serve an electric water heater and a well pump, ensuring dependable power where it matters most.
Primary service category: Panels & Service Upgrades
Secondary category: Subpanel Installation
Scope of Work
- Installed a small indoor-rated 100A subpanel sized for future expansion.
- Pulled a 4‑wire SER 1/0 feeder from the home’s main panel to the shed for ample capacity and proper equipment grounding.
- Added a dedicated 30A, double-pole circuit for the electric water heater using appropriately sized 10/2 NM-B cable from the subpanel.
- Added a dedicated 20A, double-pole circuit for the well pump using 12/2 NM-B cable from the subpanel.
- Protected exposed transitions with 3/4" liquid-tight flexible conduit and listed fittings for a durable, weather-resistant install.
- Installed and labeled all breakers and circuits for clear identification and easy future service.
We secured the required permit for the subpanel installation and completed the work to current local code requirements. The result is a tidy, serviceable setup that supports the client’s water heater and well pump with dedicated capacity while leaving room for future circuits in the shed.
Why a Shed Subpanel Makes Sense
- Dedicated power where you need it: Running a subpanel to an outbuilding reduces voltage drop, isolates equipment loads, and improves reliability for water systems and appliances.
- Room to grow: The 100A subpanel provides additional spaces for lighting, receptacles, or equipment upgrades later without crowding the home’s main panel.
- Cleaner, safer wiring: Shorter branch-circuit runs within the shed, proper grounding, and correct overcurrent protection contribute to long-term safety and easier maintenance.
Materials and Methods Used
- Subpanel (indoor-rated, small 4/8): Installed with proper neutral isolation and equipment grounding, with clear circuit labeling.
- SER 1/0 (4‑wire) feeder: Provides ample capacity and a dedicated equipment grounding conductor from the main panel to the subpanel.
- Breakers: One 30A double-pole breaker (water heater) and one 20A double-pole breaker (well pump), matched to conductor sizes and loads.
- NM‑B 10/2 and 12/2 branch wiring: Correctly sized copper conductors for 30A and 20A 240V dedicated circuits, neatly routed and secured.
- 3/4" Liquid-tight/flex conduit: Used where conductors needed extra protection against moisture or physical damage.
As jurisdictions continue adopting newer code cycles, inspectors may call for additional protective devices such as AFCI in certain areas. Our team advises homeowners on these requirements and provides compliant solutions when requested by the Authority Having Jurisdiction.
Local Expertise in Youngsville, Backed by Our Raleigh Branch
Touchstone Electric’s Raleigh team serves homeowners throughout Youngsville, NC with professional panel work, subpanel installations, and dedicated circuits for critical equipment. From permitting and planning to final labeling, we deliver organized installations that simplify future service and upgrades.
