The technician installed a dedicated outlet for the sump pump, routed a new circuit from the main panel, and used EMT conduit with a metal outlet box for protection in the damp area.
Touchstone Electric Blogs
Raleigh Sump Pump
Outlet Installation
See how Touchstone Electric installed a dedicated sump pump outlet in Raleigh with conduit and a metal box for damp conditions.
Expert Insight
From licensed electricians
Code Compliant
Built to safety standards
Licensed & Insured
NC & SC certified
5-Star Reviews
Trusted by homeowners
Project Snapshot
Dedicated Power For A Sump Pump

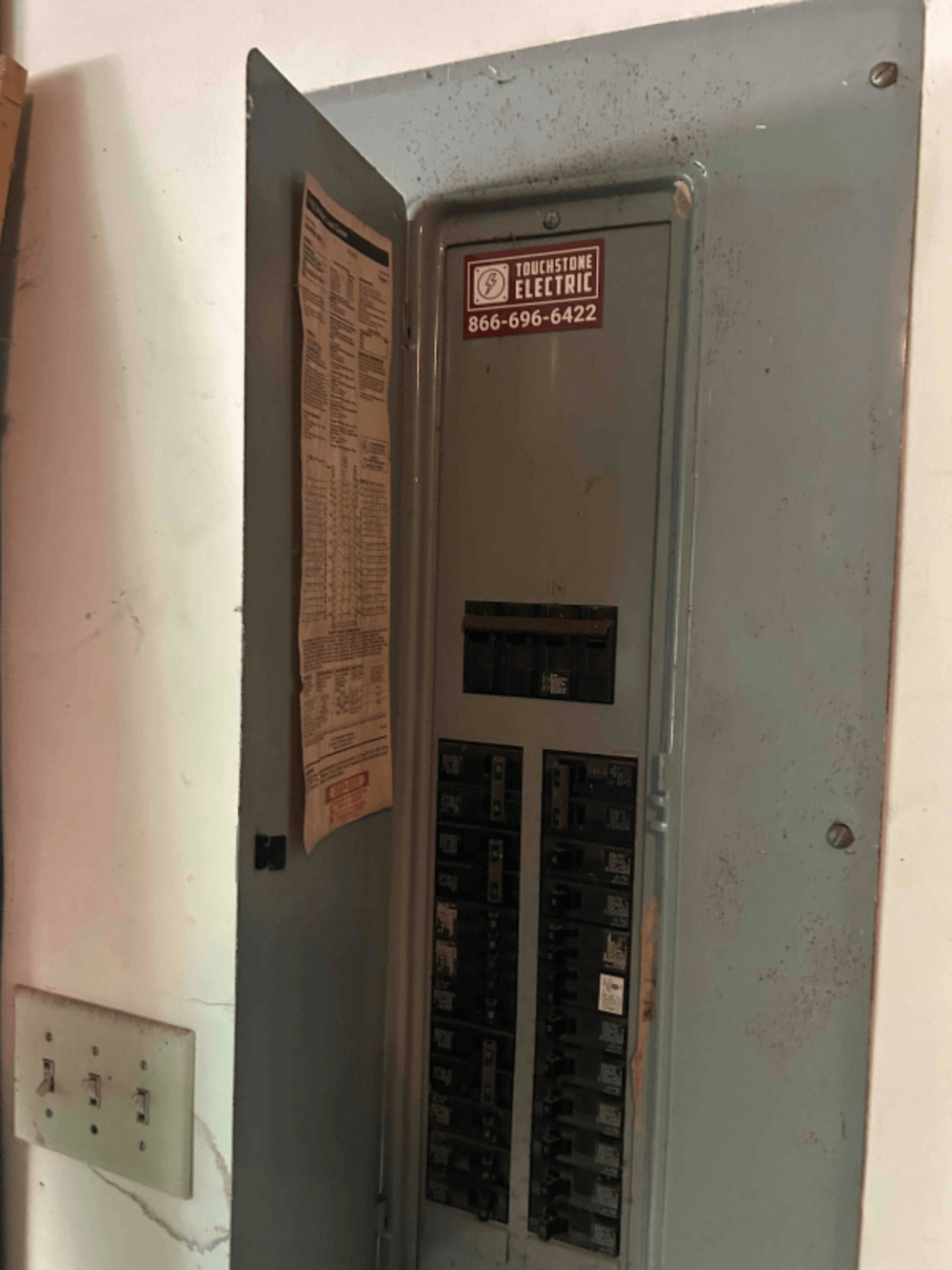

A Raleigh homeowner called Touchstone Electric to install a dedicated outlet for a sump pump system. The work included routing a new circuit from the panel, passing through the floor system, and placing power where the pump needed it. The technician used EMT conduit and a metal outlet box to help protect the wiring in a damp, hard-working area. For similar circuit work, see our electrical repair services.
- Dedicated outlet installed for sump pump equipment
- Circuit routed from the main panel to the pump location
- EMT conduit and metal outlet box used for added protection
- Damp-area placement planned around safety and reliability
The customer summed up the finished installation simply: job well done.
Sump pumps should not depend on improvised power
A sump pump protects the home when water shows up. It should not rely on an extension cord, loose outlet, or shared circuit that trips when other loads run. Dedicated power makes the system easier to trust and troubleshoot.
Dedicated outlet placed where the sump pump needs power
Circuit routed from the panel for reliable pump operation
EMT conduit and metal box used for protected wiring
Pump Circuit Safety
Damp Areas Need Protected Wiring
A sump pump outlet often sits where moisture, floor penetrations, equipment movement, and limited access all matter. The installation should protect the conductors and keep the receptacle usable when the pump is needed.
NEC 210.8 is the GFCI protection topic for areas where moisture raises shock risk. A GFCI watches current leaving and returning, then shuts power off quickly if current leaks through an unsafe path.
NEC Article 358 covers electrical metallic tubing, or EMT. In plain language, EMT protects conductors from physical damage when the wiring route needs a stronger raceway than exposed cable.
- Avoid extension cords for sump pumps because they add failure points in a damp area.
- Place the outlet where the pump cord reaches without strain and the device can be serviced.
- Use GFCI protection when moisture or local requirements call for it, while planning for reliable pump operation.
- Protect wiring routes through floors, framing, or exposed areas with the right raceway or cable method.
- Keep completed sump pump outlet work documented with your Lifetime Craftsmanship Warranty details.
A sump pump outlet is not just another receptacle. It supports equipment that protects the home from water, so reliability matters as much as convenience. We look at the panel, route, box, conduit, protection, and pump location before the circuit is complete.
Raleigh homeowners can review local service details on our Raleigh electrician page. If the panel has no room for another circuit or the pump circuit trips repeatedly, our panel upgrade and electrical services pages explain broader options.
Need a safe outlet for a sump pump?
Tell us where the pump sits and what panel you have. We will check the route, protection, and outlet placement before installing dedicated power.
